GRADE AND TONNAGE MODEL OF MAJOR PODIFORM CHROMITE
By Donald A. Singer, Norman J Page, and Bruce R. Lipin
DATA REFERENCES Page and others (1979), Page and others (1982b), Page and others (1984).
COMMENTS This model, number 8b, is provided as an alternative to the podiform chromite model, number 8a, based on California and Oregon deposits because of the significant difference in tonnage of the two groups. The two groups are geologically similar and share the same descriptive model. Rh, Ir, Ru, Pd, and Pt grades are based on reported analyses of samples from the deposits. Platinum grade is correlated with chromite grade (r = 0.76, n = 12) and iridium grade (r = 0.71, n = 8). Rhodium is correlated with iridium grade (r = 0.88, n = 7). See figs. 24-26.
Figure 24. Tonnages of major podiform chromite deposits. Individual digits represent number of deposits. [Because of limitations on the reproduction of the original figure, these numbers cannot be distinguished in the figure.]

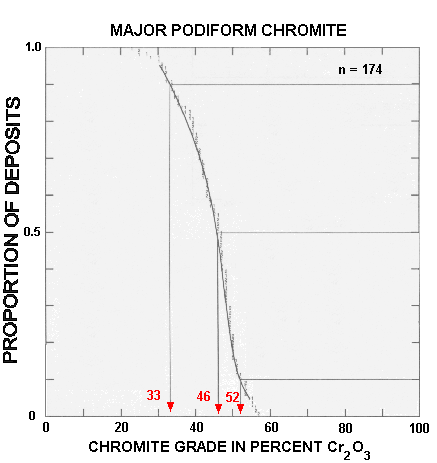

Figure 25. Chromite grades of major podiform chromite deposits. Individual digits represent number of deposits. [Because of limitations on the reproduction of the original figure, these numbers cannot be distinguished in the figure.]

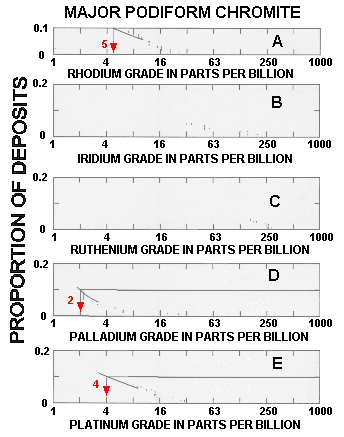

Figure 26. PGE grades of major podiform chromite deposits. A, Rhodium. B, Iridium. C, Ruthenium. D, Palladium. E, Platinum. Individual digits represent number of deposits. [Because of limitations on the reproduction of the original figure, these numbers cannot be distinguished in the figure.]
DEPOSITS
Name Country
Abdasht IRAN
Akarca TRKY
Akcabuk TRKY
Akkoya TRKY
Alice Louise NCAL
Alpha NCAL
Altindag TRKY
Amores CUBA
Andizlik TRKY
Anna Madeleine NCAL
Asagi Zorkum TRKY
Aventura CUBA
Avsar TRKY
Bagin TRKY
Bagirsakdire TRKY
Balcicakiri TRKY
Bati- W. Yarma TRKY
Bati-N. Yarma TRKY
Bati-Taban TRKY
Batikef TRKY
Bellacoscia NCAL
Bellevue NCAL
Bereket TRKY
Bezkere-Bulurlii TRKY
Bicir-Cakir TRKY
Bicir-Gul TRKY
Bonsecours NCAL
Bozkonus TRKY
Bozotluk-No. 551 TRKY
Bugugan TRKY
Buyiik Gurleyen TRKY
Buyiik Karamanli TRKY
Caledonia CUBA
Camaguey CUBA
Catak TRKY
Catak-Koraalan TRKY
Catolsinir I TRKY
Catolsinir II TRKY
Cenger TRKY
Cenger-Adatepe TRKY
Cenger-Demirk TRKY
Cenger-Domuza TRKY
Cezni TRKY
Chagrin NCAL
Child Harold NCAL
Consolation NCAL
Cosan TRKY
Coto PLPN
Cromita CUBA
Dagardi TRKY
Dagkuplu TRKY
Danacik TRKY
Dcev 7 NCAL
Delta CUBA
Demirli TRKY
Dinagat PLPN
Dogu Ezan TRKY
Dogu Kef TRKY
Domuzburnu II TRKY
Dovis IRAN
East Ore Body PLPN
El Cid CUBA
Eldirek TRKY
Ermenis TRKY
Fanrouche NCAL
Findikli TRKY
Findikli #301 TRKY
Findikli #306-#307 TRKY
Findikli #326 TRKY
General Gallieni NCAL
Gerdag TRKY
Golalan TRKY
Gorunur TRKY
Govniikbelen TRKY
Gr2h NCAL
Guillermina CUBA
Gunlet-Uckopur TRKY
Gunliik Basi TRKY
Herpit Yayla TRKY
Ikisulu-Gercek TRKY
Jose CUBA
Kagit Octu TRKY
Kandira TRKY
Kapin TRKY
Karaculha TRKY
Karageban TRKY
Karani TRKY
Karaninar TRKY
Karasivri TRKY
Karatas-Kumocak TRKY
Kartalkoyu TRKY
Kavakcali TRKY
Kavakdere TRKY
Kazadere-Kandil TRKY
Kefdag-East TRKY
Kemikli Inbasi TRKY
Kilic-Kafasi 1 TRKY
Kilic-Kafasi 2 TRKY
Kiranocak TRKY
Koca TRKY
Komek TRKY
Koycegiz-Curukcu TRKY
Koycegiz-Kurardi TRKY
Koycegiz-Orta TRKY
Kuldoden TRKY
Kundikan-Keluskdere TRKY
Kundikan-Kelusktepe TRKY
Kurudere TRKY
Kuyuluk Isletmesi TRKY
Kuzkavak TRKY
La Caridid CUBA
Lagonoy PLPN
La Victoria CUBA
Lolita CUBA
Marais Kiki NCAL
Meululter TRKY
Middle Ore Body PLPN
Mirandag Koru TRKY
Mirandag Mevki TRKY
Morrachini NCAL
Musa Danisman TRKY
Narciso CUBA
Ni Te Ocutes CUBA
Ochanocagi TRKY
Ofelia CUBA
Orta Ezan TRKY
Otmanlar-Harpuzlu TRKY
Otmanlar-Mesebuku TRKY
Panamana-An PLPN
P. B. NCAL
Pergini TRKY
Potosi CUBA
Ruff Claim No. 32 PLPN
Saka TRKY
Salur TRKY
Sarialan TRKY
Sarikaya TRKY
Saysin TRKY
Sekioren TRKY
Shahin IRAN
Sicankale TRKY
Sirac TRKY
Sofulu TRKY
Sogham IRAN
Sta. Cruz PLPN
Stephane NCAL
Suluiyeh IRAN
Sulu TRKY
Suluk TRKY
Sutpinar TRKY
Suzanne NCAL
Tekneli TRKY
Tepebasi TRKY
Terlik TRKY
Tiebaghi NCAL
Tilkim-Karanlik TRKY
Togobomar PLPN
Tosin TRKY
Toparlar-Alacik TRKY
Tuzlakaya TRKY
Uckopru TRKY
Vieille Montagne 1 NCAL
Vieille Montagne 2 NCAL
West Ore Body PLPN
Yanikara TRKY
Yaprakli TRKY
Yayca Boyna TRKY
Yilmaz Ocagi TRKY
Yukari Zorkum TRKY
Yunus Yayla TRKY
Yurtlak TRKY
Zambales Ch PLPN
Zimparalik TRKY
