GRADE AND TONNAGE MODEL OF SYNOROGENIC-SYNVOLCANIC Ni-Cu

By Donald A. Singer, Norman J Page, and W. David Menzie

COMMENTS Pd, Pt, Au, and Co grades are based on reported analyses of samples from the deposits. See figs. 15-18.

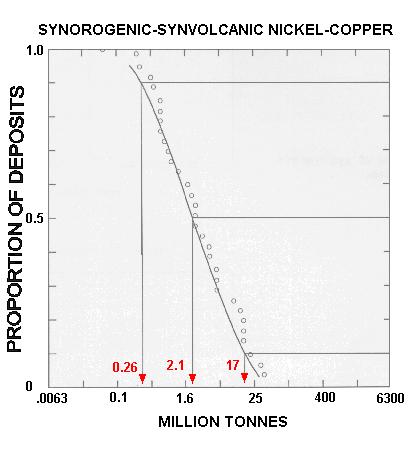

Figure 15. Tonnages of synorogenic-synvolcanic Ni-Cu.

fig 15

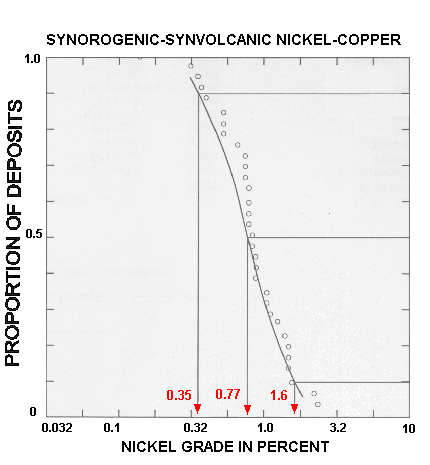

Figure 16. Nickel grades of synorogenic-synvolcanic Ni-Cu.

fig 16

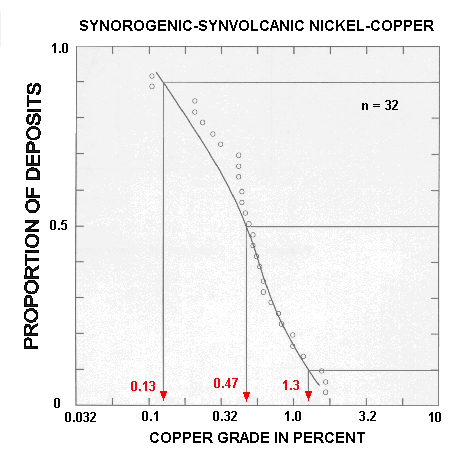

Figure 17. Copper grades of synorogenic-synvolcanic Ni-Cu.

fig 17

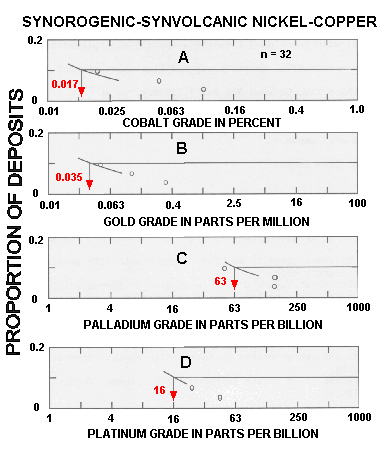

Figure 18. By-product grades of synorogenic-synvolcanic Ni-Cu. A, Cobalt. B, Gold. C, Palladium. D, Platinum.

fig 18

DEPOSITS

Name Country

Bamble NRWY

Carr Boyd AUWA

Empress ZIMB

Flaat NRWY

Funter Bay USAK

Gap USPA

Giant Mascot CNBC

Hosanger NRWY

Kenbridge CNON

Kylmakoski FNLD

Lainijaur SWDN

Lappuattnet SWDN

Laukunkanges FNLD

Lorraine CNQU

Lynn Lake CNMN

Madziwa ZIMB

Makola FNLD

Mjodvattnet SWDN

Montcalm CNON

Mt. Sholl AUWA

Phoenix BOTS

Pikwe BOTS

Renzy CNQU

Risliden SWDN

Selebi BOTS

Selebi N. BOTS

Selkirk BOTS

Tekwane BOTS

Thierry CNON

Vakkerlien NRWY

Vammala FNLD

Yakobi Island USAK
