GRADE AND TONNAGE MODEL OF SHORELINE PLACER Ti
By Emil D. Attanasi and John H. DeYoung, Jr.
COMMENTS Grade and tonnage estimates represent mining units rather than individual lenses. Grades are represented as percent TiO2 from rutile, ilmenite, leucoxene, percent ZrO2 from zircon, and percent rare-earth oxides from monazite. Zircon is correlated with rutile (r = 0.49, n = 50), ilmenite (r = 0.58, n = 52), leucoxene (r = 0.55, n = 24), and monazite (r = 0.55, n = 29). Ilmenite is correlated with leucoxene (r = 0.66, n = 24) and with monazite (r = 0.66, n = 29). See figs. 201-205.

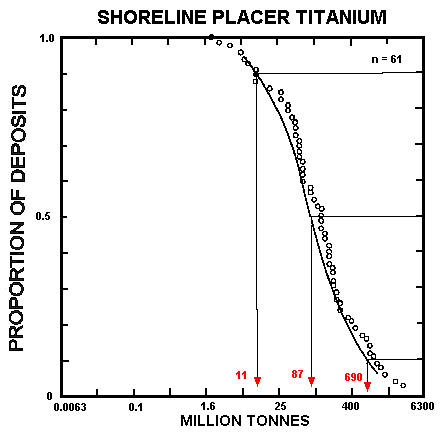

Figure 201. Tonnages of shoreline placer Ti deposits.

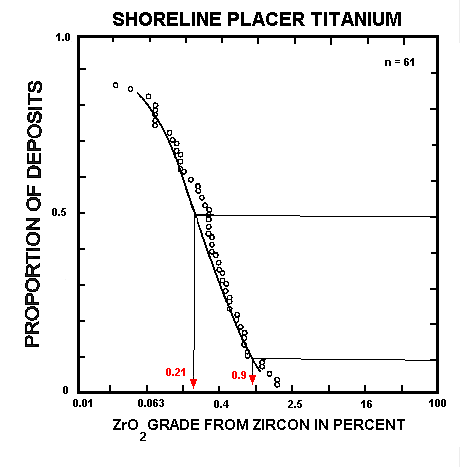

Figure 202. Zirconium oxide grades from zircon in shoreline placer Ti deposits.

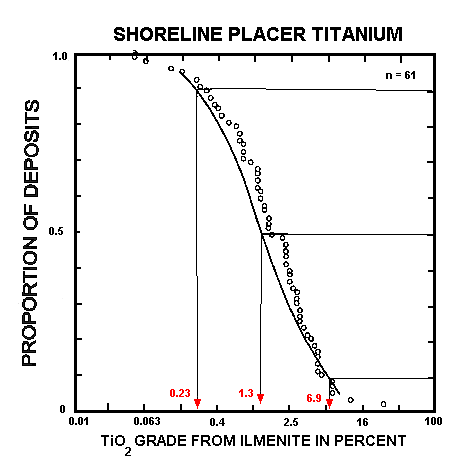

Figure 203. Titanium oxide grades from ilmenite in shoreline placer Ti deposits.

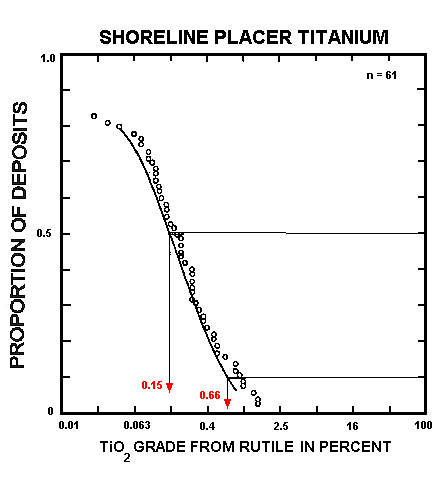

Figure 204. Titanium oxide grades from rutile in shoreline placer Ti deposits.

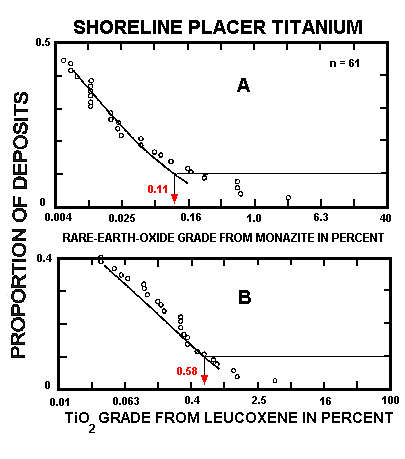

Figure 205. Other metal grades of shoreline placer Ti deposits. A, REE oxide from monazite. B, Titanium oxide from leucoxene.
DEPOSITS
Name Country
Agnes Waters AUQL
Barrytown NZLD
Birchfield NZLD
Bothaville-Wolmaransstad SAFR
Boulougne-Folkston USFL
Bridge Hill Ridge AUNS
Brunswick-Altamaha USGA
Camaratuba BRZL
Capel Shoreline AUWA
Carolina SAFR
Charleston-B USSC
Charleston-C USSC
Charleston-I USSC
Charleston-K USSC
Charleston-L USSC
Charleston-N USSC
Cumberland Island USGA
Curtis Island AUQL
East Rosetta EGPT
Eneabba Shoreline AUWA
Evans Head-Wooli area AUNS
Fraser Island AUQL
Gingin Shoreline AUWA
Gladstone Mainland AUQL
Green Cove Springs USFL
Highland-Trail Ridge USFL
Hilton Head Island USSC
Hokitika North NZLD
Hokitika South NZLD
Inskip Point (Cooloola area) AUQL
Jacksonville Area USFL
Karamea NZLD
Lakehurst (Glidden) USNJ
Manavalakurichi INDA
Manchester (Asarco) USNJ
Moreton Island AUQL
Munbinea Shoreland AUWA
Munmorah AUNS
Muriwai NZLD
N.L. Industries (Aurora) USNC
N. Stradbroke Island AUQL
Natchez Trace State Park USTN
North Camden (Keer- McGee) USTN
Oak Grove (Ethyl) USTN
Orissa (Chatrapur) INDA
Poerua River NZLD
Pulmoddai SRIL
Quilon (Chavara) INDA
Richards Bay SAFR
Ross NZLD
Scott River AUWA
Ship Island USMS
Silica Mine USTN
Stockton Bight AUNS
Tuncurry-Tomago area AUNS
Waiho River NZLD
Waroona Shoreline AUWA
Westport NZLD
Yoganup Shoreline AUWA
Yulee USFL
