| Well Name | Core Start feet |
Core Stop feet |
Slide Start feet |
Slide Stop feet |
Stratigraphic Unit |
Photograph |
|---|---|---|---|---|---|---|

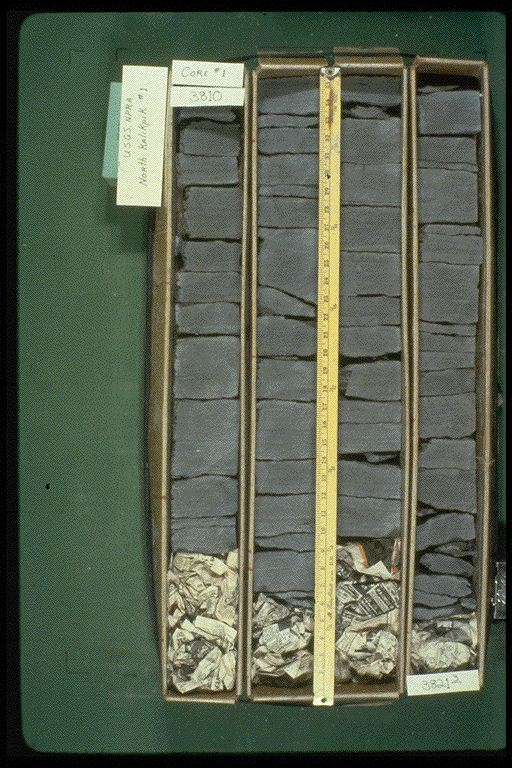

| NORTH KALIKPIK 1 | 3810 | 3820 | 3810 | 3821.2 | TOROK FORMATION | 1453037 |
| NORTH KALIKPIK 1 | 4994 | 5004 | 4994 | 5004 | TOROK FORMATION | 1453038 |
| NORTH KALIKPIK 1 | 5871 | 5881 | 5871 | 5879 | TOROK FORMATION | 1453039 |
| NORTH KALIKPIK 1 | 6698 | 6708 | 6698 | 6703.6 | TOROK FORMATION | 1453039 |
| NORTH KALIKPIK 1 | 6698 | 6708 | 6703.6 | 6708.2 | TOROK FORMATION | 1453040 |
| NORTH KALIKPIK 1 | 6992 | 7026 | 6992 | 6999.1 | PEBBLE SHALE UNIT | 1453040 |
| NORTH KALIKPIK 1 | 6992 | 7026 | 6999.1 | 7011 | PEBBLE SHALE UNIT | 1453041 |

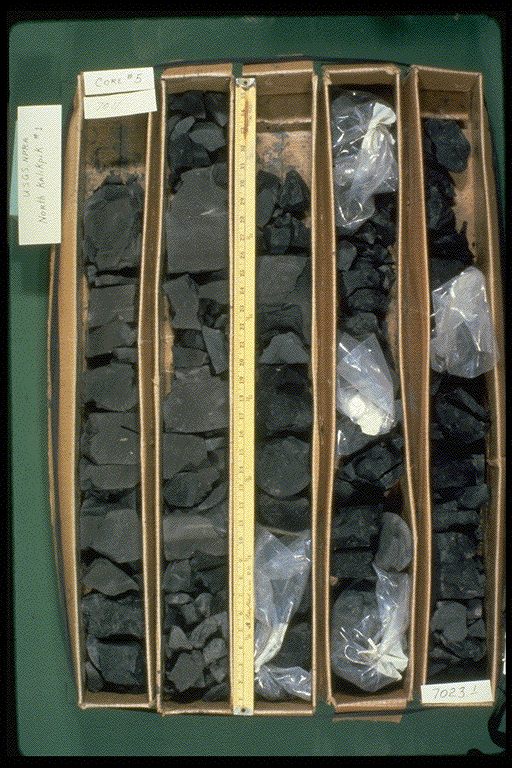

| NORTH KALIKPIK 1 | 6992 | 7026 | 7011 | 7023.1 | PEBBLE SHALE UNIT | 1453042 |

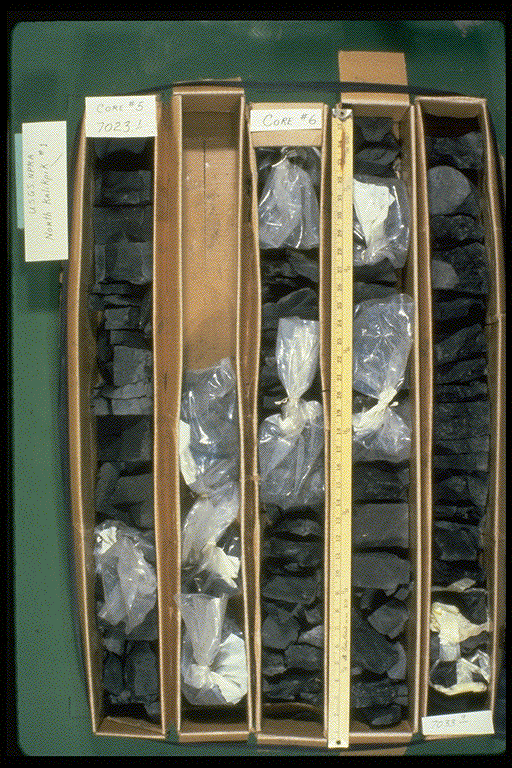

| NORTH KALIKPIK 1 | 6992 | 7026 | 7023.1 | 7033.9 | PEBBLE SHALE UNIT | 1453043 |
| NORTH KALIKPIK 1 | 6992 | 7026 | 7033.9 | 7047 | PEBBLE SHALE UNIT | 1453044 |
| NORTH KALIKPIK 1 | 7047 | 7107 | 7047 | 7060.7 | PEBBLE SHALE UNIT | 1453045 |
| NORTH KALIKPIK 1 | 7047 | 7107 | 7060.7 | 7074.5 | PEBBLE SHALE UNIT | 1453046 |

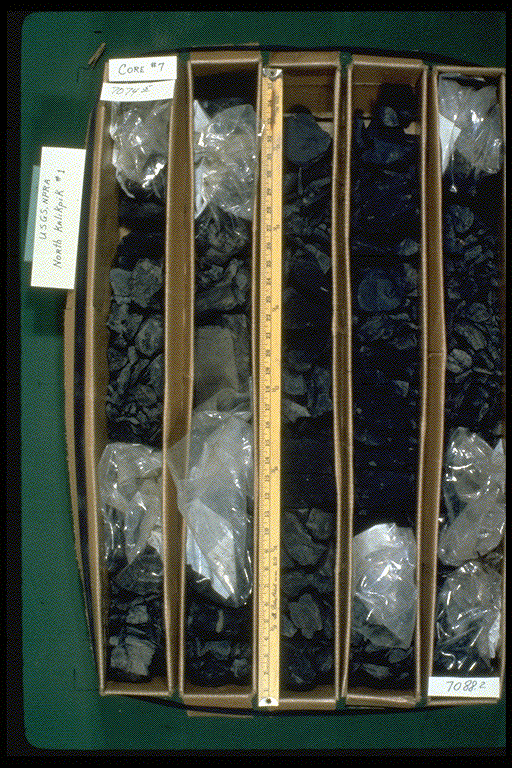

| NORTH KALIKPIK 1 | 7047 | 7107 | 7074.5 | 7088.2 | PEBBLE SHALE UNIT | 1453047 |
| NORTH KALIKPIK 1 | 7047 | 7107 | 7088.2 | 7099 | PEBBLE SHALE UNIT | 1453048 |

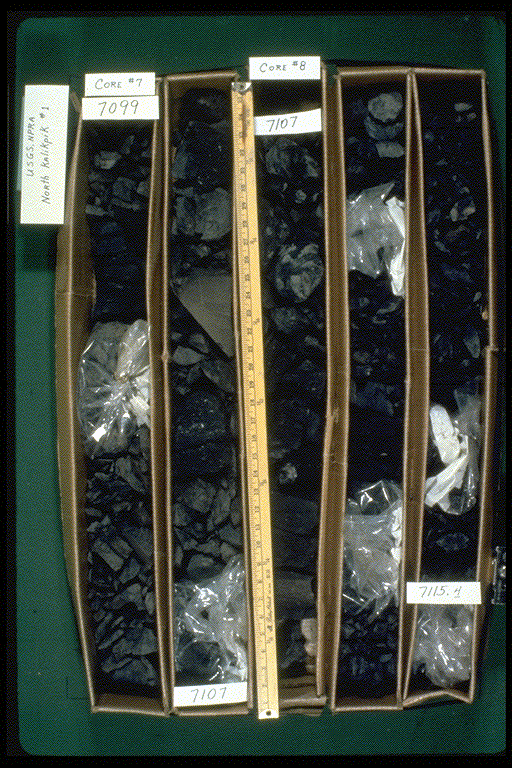

| NORTH KALIKPIK 1 | 7047 | 7107 | 7099 | 7107 | PEBBLE SHALE UNIT | 1453049 |
| NORTH KALIKPIK 1 | 1107 | 1136 | 7107 | 7115.4 | PEBBLE SHALE UNIT | 1453049 |
| NORTH KALIKPIK 1 | 1107 | 1136 | 7115.4 | 7129.4 | PEBBLE SHALE UNIT | 1453050 |

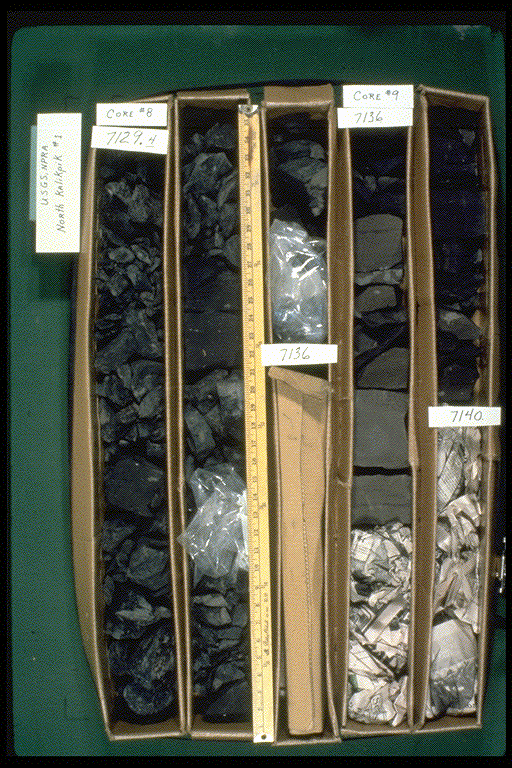

| NORTH KALIKPIK 1 | 1107 | 1136 | 7129.4 | 7136 | PEBBLE SHALE UNIT | 1453051 |
| NORTH KALIKPIK 1 | 7136 | 7139 | 7136 | 7140 | PEBBLE SHALE UNIT | 1453051 |
| NORTH KALIKPIK 1 | 7139 | 7159 | 7140 | 7152.4 | PEBBLE SHALE UNIT, KINGAK SHALE, UNDIVIDED | 1453052 |
| NORTH KALIKPIK 1 | 7139 | 7159 | 7152.4 | 7161 | PEBBLE SHALE UNIT, KINGAK SHALE, UNDIVIDED | 1453053 |
| NORTH KALIKPIK 1 | 7159 | 7161 | 7161 | 7163 | KINGAK SHALE | 1453053 |
| NORTH KALIKPIK 1 | 7161 | 7165 | 7163 | 7165 | KINGAK SHALE | 1453053 |

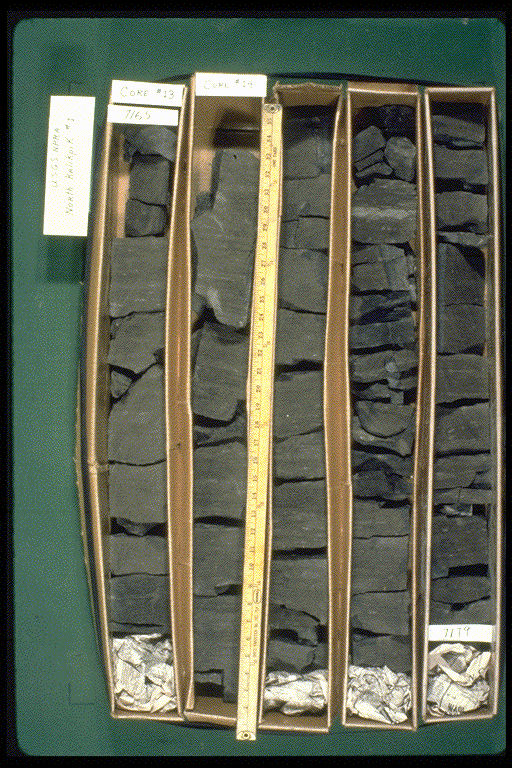

| NORTH KALIKPIK 1 | 7165 | 7167 | 7165 | 7179 | KINGAK SHALE | 1453054 |

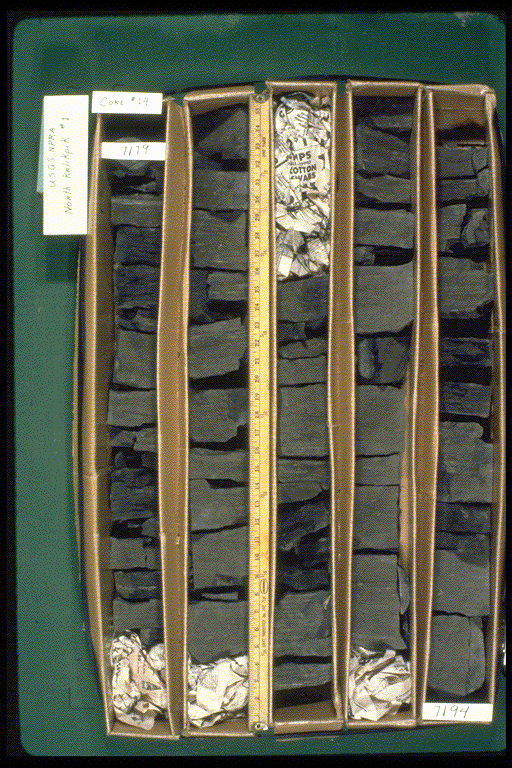

| NORTH KALIKPIK 1 | 7165 | 7167 | 7179 | 7194 | KINGAK SHALE | 1453055 |

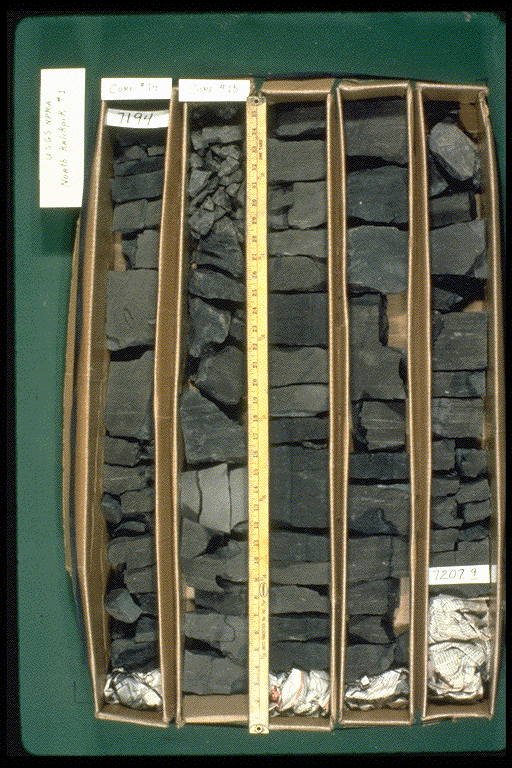

| NORTH KALIKPIK 1 | 7165 | 7167 | 7194 | 7207.9 | KINGAK SHALE | 1453056 |

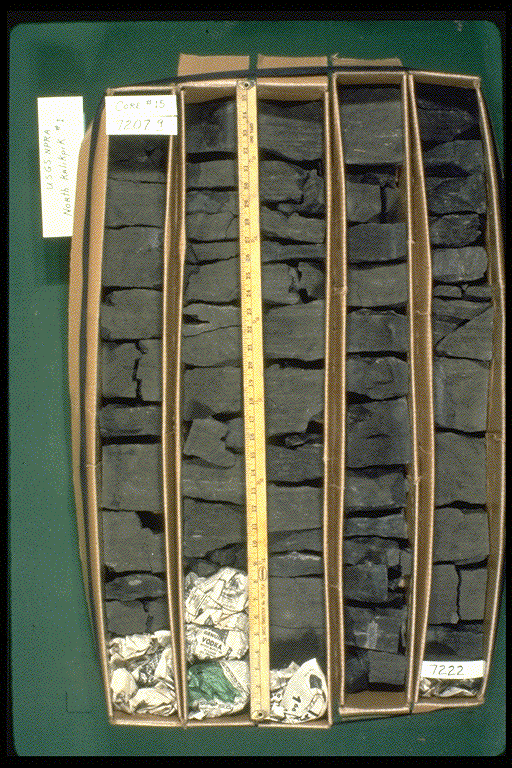

| NORTH KALIKPIK 1 | 7165 | 7167 | 7207.9 | 7222 | KINGAK SHALE | 1453057 |
| NORTH KALIKPIK 1 | 7165 | 7167 | 7222 | 7225 | KINGAK SHALE | 1453058 |
| NORTH KALIKPIK 1 | 7225 | 7230 | 7225 | 7230 | KINGAK SHALE | 1453058 |
| NORTH KALIKPIK 1 | 7390 | 7395 | 7390 | 7395 | KINGAK SHALE | 1453058 |
