. . . where we combined geologic mapping with ground geophysical profiles:

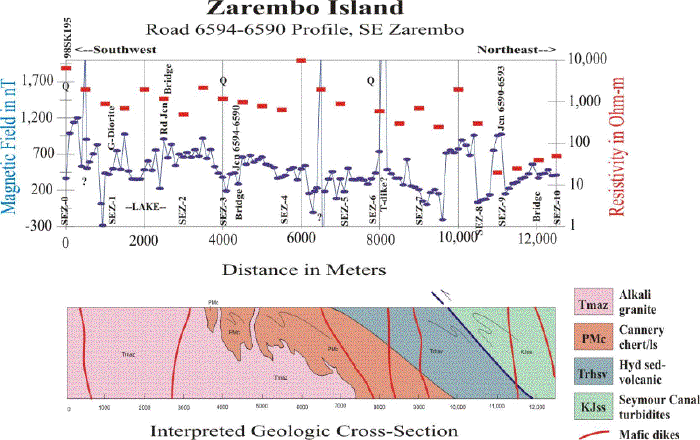

This is an example, taken from Zarembo Island, of a geologic-geophysical profile. Resistivities are shown in red, magnetic values in blue, and the inferred geologic cross-section (based on observed geology and the geophysics together) is shown below the geophysical profile.
 |
 |
