Sea-Floor Character and Sedimentary Processes in the Vicinity of Woods Hole, Massachusetts

Skip past contents informationTitle | Abstract | Introduction | Setting | Methods | Bathymetry and Backscatter | Seismic Profiles | Character and Processes | Data Catalog | Acknowledgments | References | Figures | Bottom Photography | Sediment Data | Contacts

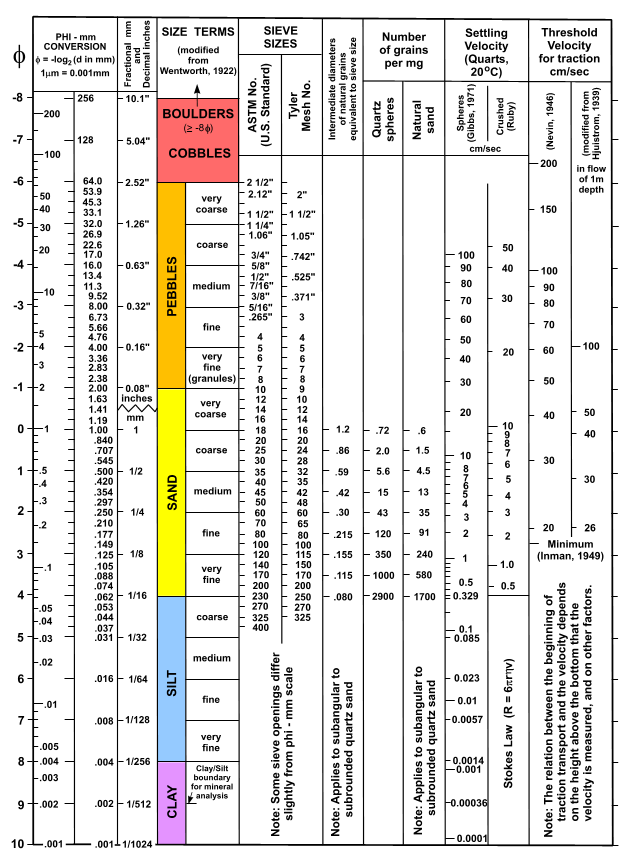

Figure 14. Correlation chart (Poppe and others, 2005) showing the relations among phi sizes, diameter in millimeters, size classifications (Wentworth, 1922), and American Society of Testing and Materials (ASTM) and Tyler sieve sizes. Chart also shows the corresponding intermediate diameters, grains per milligram, settling velocities, and threshold velocities for traction.

Figure 14. Correlation chart (Poppe and others, 2005) showing the relations among phi sizes, diameter in millimeters, size classifications (Wentworth, 1922), and American Society of Testing and Materials (ASTM) and Tyler sieve sizes. Chart also shows the corresponding intermediate diameters, grains per milligram, settling velocities, and threshold velocities for traction.
