Graphics of Streamflow and Nutrient Flux for the Mississippi River below Grafton, Illinois

The following graphics depict annual flux of dissolved nitrite plus nitrate (figure 1), total nitrogen (figure 2), total phosphorus (figure 3), dissolved orthophosphate (figure 4), and dissolved silica (figure 5), along with concurrent annual streamflow for the Mississippi River below Grafton, Illinois (Station ID 05587455).

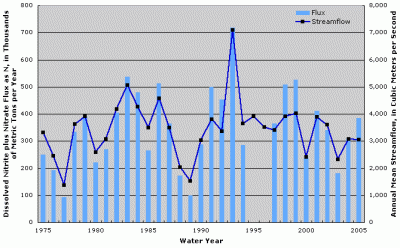

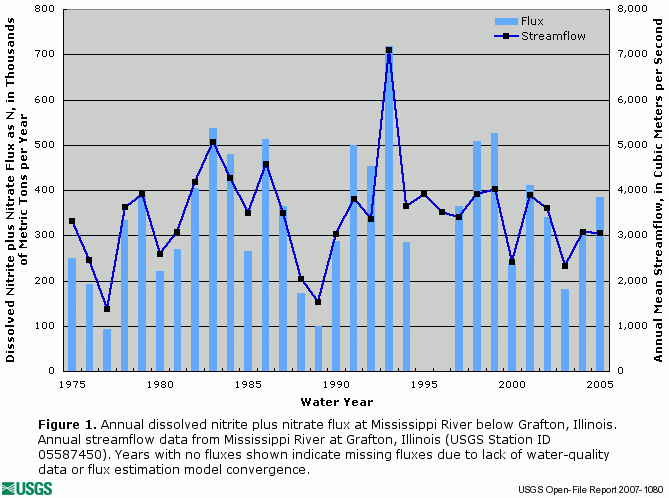

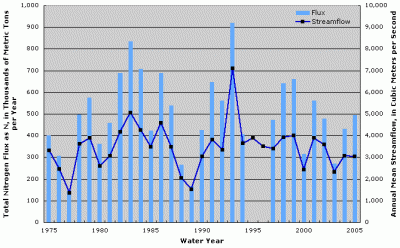

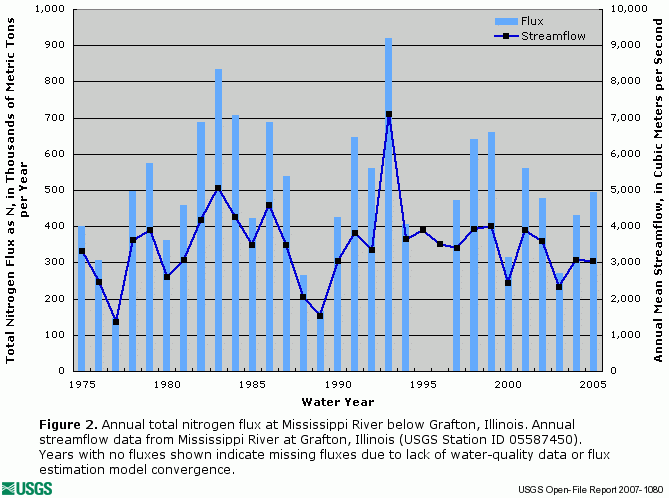

Figure 1. Annual dissolved nitrite plus nitrate flux at Mississippi River below Grafton, Illinois. Annual streamflow data from Mississippi River at Grafton, Illinois (USGS Station ID 05587450). Years with no fluxes shown indicate missing fluxes due to lack of water-quality data or flux estimation model convergence.	Figure 2. Annual total nitrogen flux at Mississippi River below Grafton, Illinois. Annual streamflow data from Mississippi River at Grafton, Illinois (USGS Station ID 05587450). Years with no fluxes shown indicate missing fluxes due to lack of water-quality data or flux estimation model convergence.

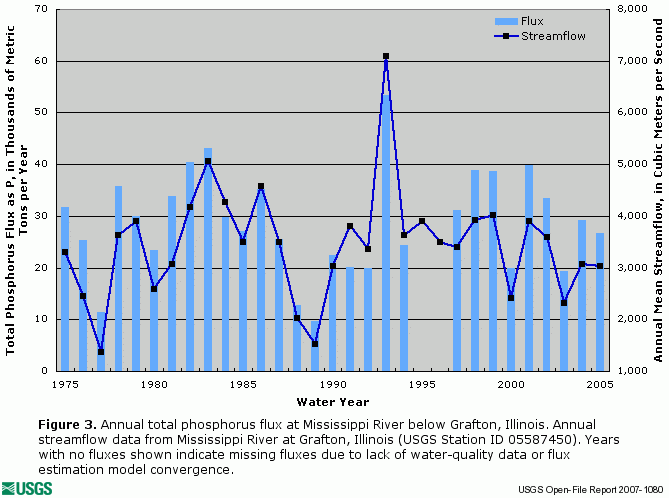

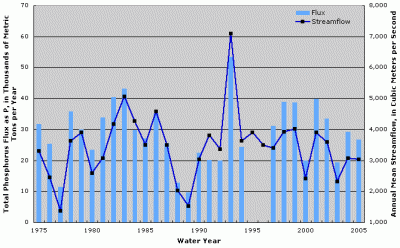

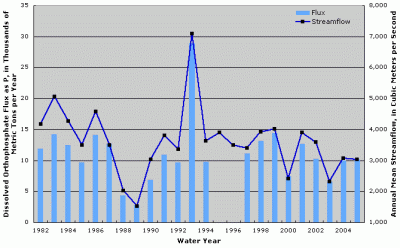

Figure 3. Annual total phosphorus flux at Mississippi River below Grafton, Illinois. Annual streamflow data from Mississippi River at Grafton, Illinois (USGS Station ID 05587450). Years with no fluxes shown indicate missing fluxes due to lack of water-quality data or flux estimation model convergence.	Figure 4. Annual dissolved orthophosphate flux at Mississippi River below Grafton, Illinois. Annual streamflow data from Mississippi River at Grafton, Illinois (USGS Station ID 05587450). Years with no fluxes shown indicate missing fluxes due to lack of water-quality data or flux estimation model convergence.

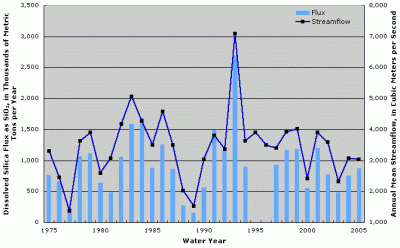

Figure 5. Annual dissolved silica flux at Mississippi River below Grafton, Illinois. Annual streamflow data from Mississippi River at Grafton, Illinois (USGS Station ID 05587450). Years with no fluxes shown indicate missing fluxes due to lack of water-quality data or flux estimation model convergence.

The data used to generate the above graphs are available on the following page.
