USGS Open-File Report 2007-1080 - Streamflow and Nutrient Fluxes of the Mississippi-Atchafalaya River Basin and Subbasins for the Period of Record Through 2005

Graphics of Streamflow and Nutrient Flux for the Ohio River at Dam 53 near Grand Chain, Illinois

The following graphics depict annual flux of dissolved nitrite plus nitrate (figure 1), total nitrogen (figure 2), total phosphorus (figure 3), dissolved orthophosphate (figure 4), and dissolved silica (figure 5), along with concurrent annual streamflow for the Ohio River at Dam 53 near Grand Chain, Illinois (Station ID 03612500).

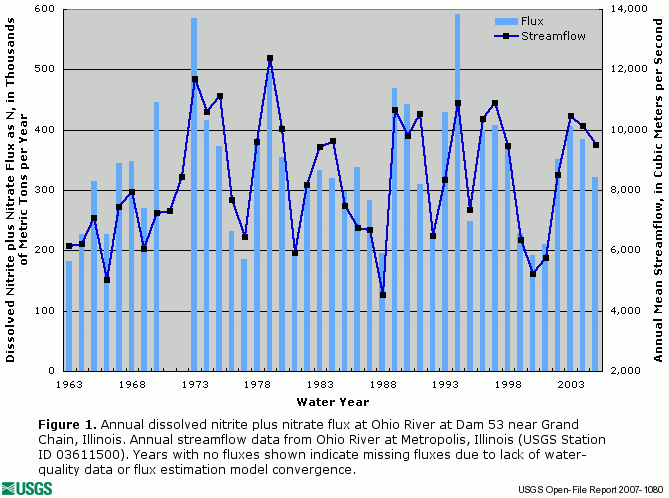

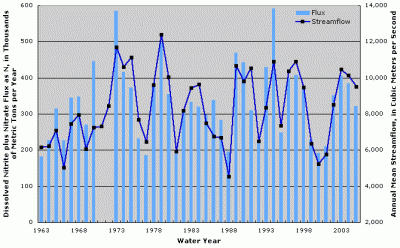

Figure 1. Annual dissolved nitrite plus nitrate flux at Ohio River at Dam 53 near Grand Chain, Illinois. Annual streamflow data from Ohio River at Metropolis, Illinois (USGS Station ID 03611500). Years with no fluxes shown indicate missing fluxes due to lack of water-quality data or flux estimation model convergence.	Figure 2. Annual total nitrogen flux at Ohio River at Dam 53 near Grand Chain, Illinois. Annual streamflow data from Ohio River at Metropolis, Illinois (USGS Station ID 03611500).

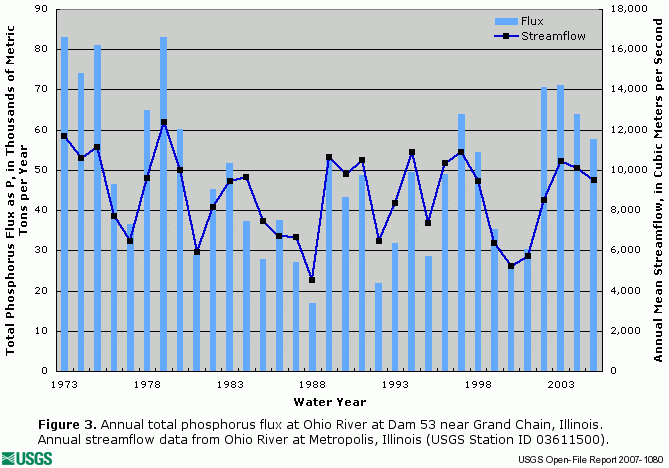

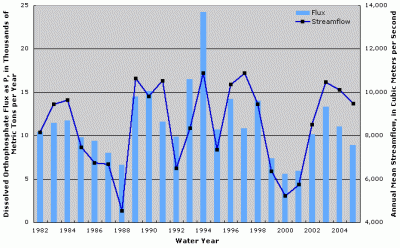

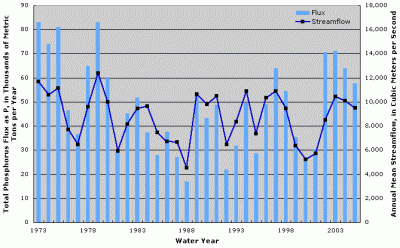

Figure 3. Annual total phosphorus flux at Ohio River at Dam 53 near Grand Chain, Illinois. Annual streamflow data from Ohio River at Metropolis, Illinois (USGS Station ID 03611500).	Figure 4. Annual dissolved orthophosphate flux at Ohio River at Dam 53 near Grand Chain, Illinois. Annual streamflow data from Ohio River at Metropolis, Illinois (USGS Station ID 03611500).

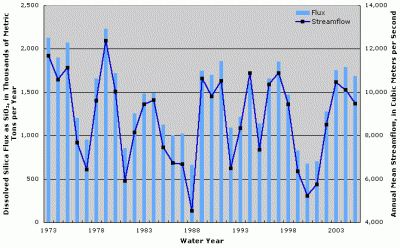

Figure 5. Annual dissolved silica flux at Ohio River at Dam 53 near Grand Chain, Illinois. Annual streamflow data from Ohio River at Metropolis, Illinois (USGS Station ID 03611500).

The data used to generate the above graphs are available on the following page.

• Streamflow and Nutrient Flux at Ohio River at Dam 53 near Grand Chain, Illinois
