USGS Open-File Report 2007-1080 - Streamflow and Nutrient Fluxes of the Mississippi-Atchafalaya River Basin and Subbasins for the Period of Record Through 2005

Graphics of Streamflow and Nutrient Flux for the Allegheny River at New Kensington, Pennsylvania

The following graphics depict annual flux of dissolved nitrite plus nitrate (figure 1), total nitrogen (figure 2), total phosphorus (figure 3), dissolved orthophosphate (figure 4), and dissolved silica (figure 5), along with concurrent annual streamflow for the Allegheny River at New Kensington, Pennsylvania (Station ID 03049625).

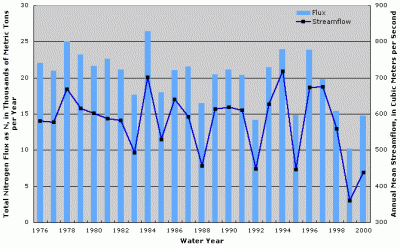

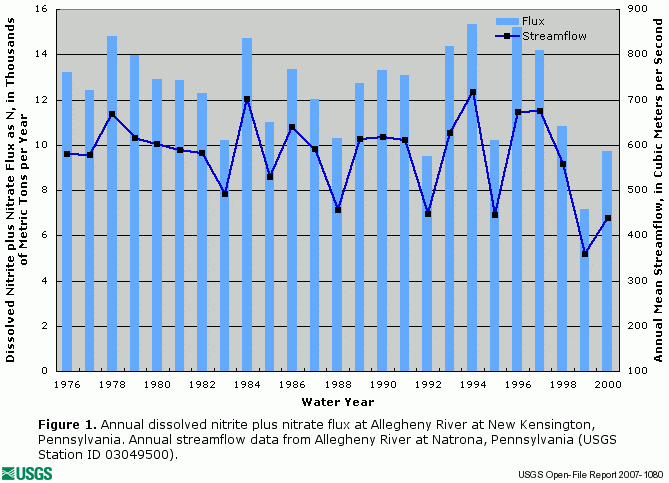

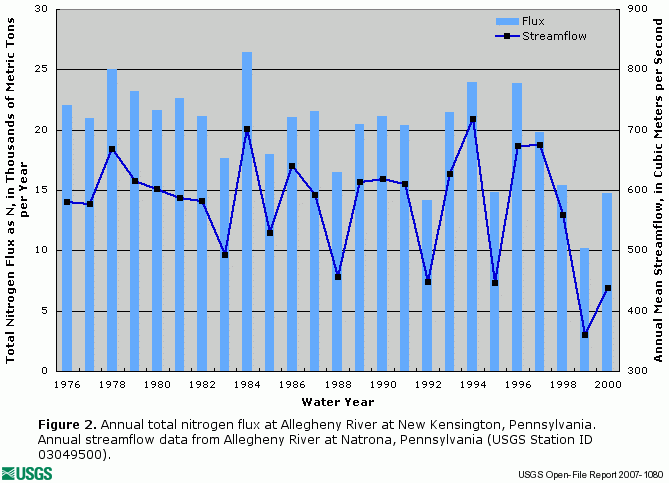

Figure 1. Annual dissolved nitrite plus nitrate flux at Allegheny River at New Kensington, Pennsylvania. Annual streamflow data from Allegheny River at Natrona, Pennsylvania (USGS Station ID 03049500).	Figure 2. Annual total nitrogen flux at Allegheny River at New Kensington, Pennsylvania. Annual streamflow data from Allegheny River at Natrona, Pennsylvania (USGS Station ID 03049500).

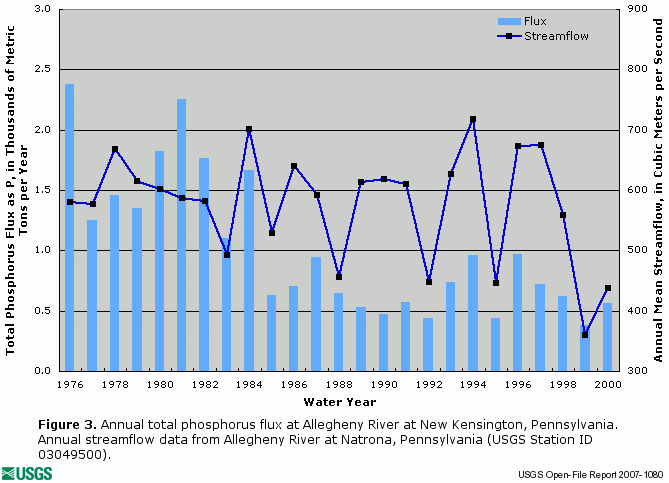

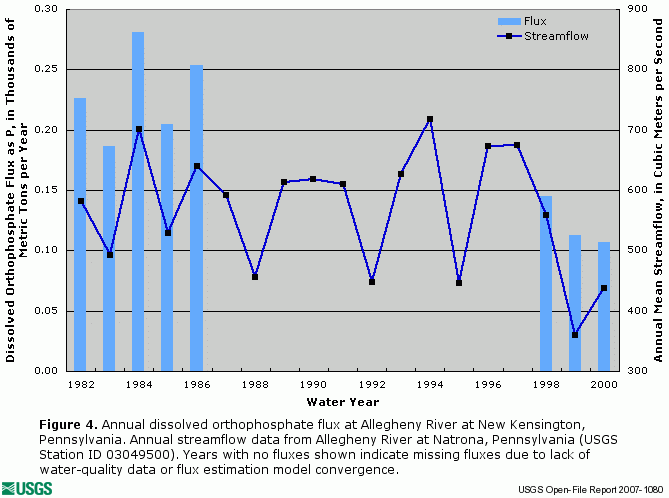

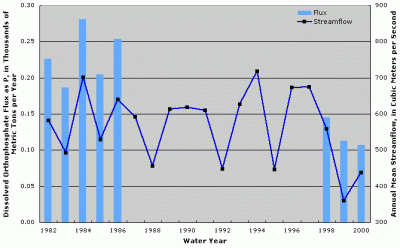

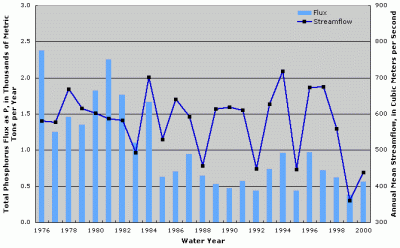

Figure 3. Annual total phosphorus flux at Allegheny River at New Kensington, Pennsylvania. Annual streamflow data from Allegheny River at Natrona, Pennsylvania (USGS Station ID 03049500).	Figure 4. Annual dissolved orthophosphate flux at Allegheny River at New Kensington, Pennsylvania. Annual streamflow data from Allegheny River at Natrona, Pennsylvania (USGS Station ID 03049500). Years with no fluxes shown indicate missing fluxes due to lack of water-quality data or flux estimation model convergence.

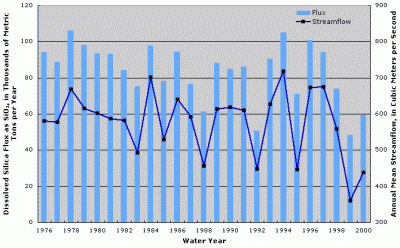

Figure 5. Annual dissolved silica flux at Allegheny River at New Kensington, Pennsylvania. Annual streamflow data from Allegheny River at Natrona, Pennsylvania (USGS Station ID 03049500).

The data used to generate the above graphs are available on the following page.

• Streamflow and Nutrient Flux at Allegheny River at New Kensington, Pennsylvania
