USGS Open-File Report 2007-1080 - Streamflow and Nutrient Fluxes of the Mississippi-Atchafalaya River Basin and Subbasins for the Period of Record Through 2005

Graphics of Streamflow and Nutrient Flux for the Grand River near Sumner, Missouri

The following graphics depict annual flux of dissolved nitrite plus nitrate (figure 1), total nitrogen (figure 2), total phosphorus (figure 3), dissolved orthophosphate (figure 4), and dissolved silica (figure 5), along with concurrent annual streamflow for the Grand River near Sumner, Missouri (Station ID 06902000).

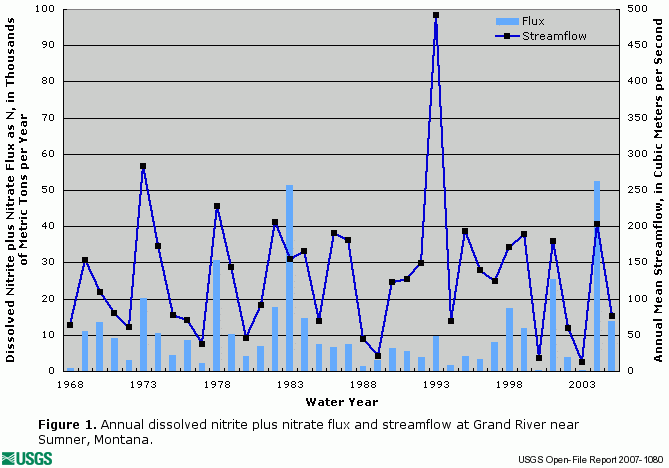

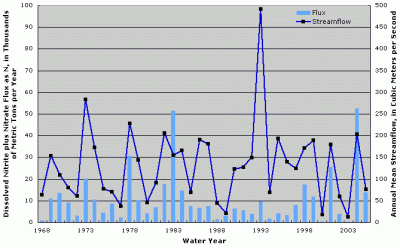

Figure 1. Annual dissolved nitrite plus nitrate flux and streamflow at Grand River near Sumner, Montana.	Figure 2. Annual total nitrogen flux and streamflow at Grand River near Sumner, Montana. Years with no fluxes shown indicate missing fluxes due to lack of water-quality data or flux estimation model convergence.

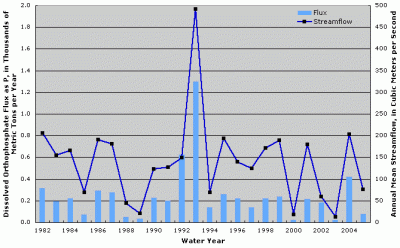

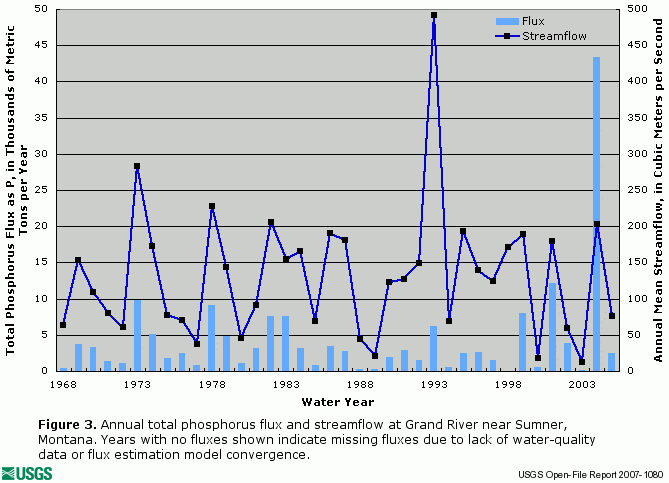

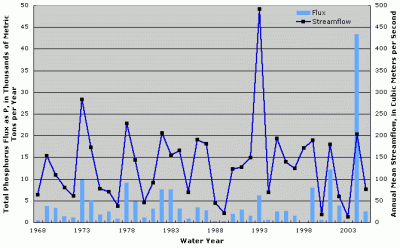

Figure 3. Annual total phosphorus flux and streamflow at Grand River near Sumner, Montana. Years with no fluxes shown indicate missing fluxes due to lack of water-quality data or flux estimation model convergence.	Figure 4. Annual dissolved orthophosphate flux and streamflow at Grand River near Sumner, Montana.

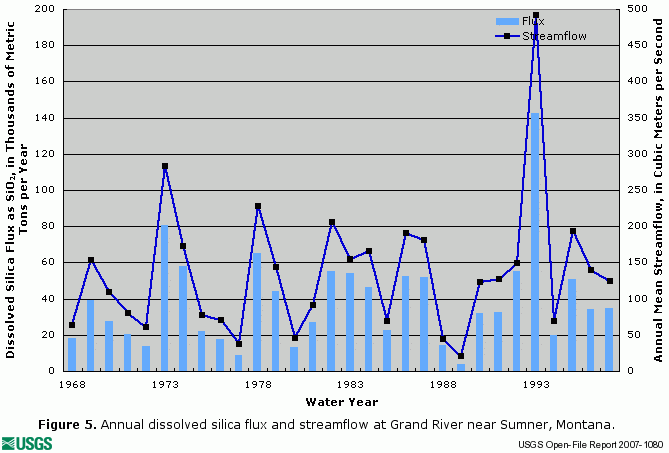

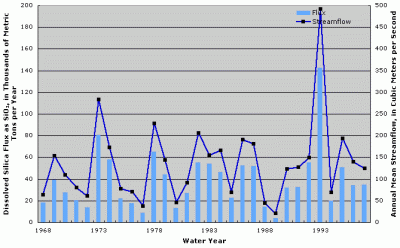

Figure 5. Annual dissolved silica flux and streamflow at Grand River near Sumner, Montana.

The data used to generate the above graphs are available on the following page.

• Streamflow and Nutrient Flux at Grand River near Sumner, Missouri
