USGS Open-File Report 2007-1080 - Streamflow and Nutrient Fluxes of the Mississippi-Atchafalaya River Basin and Subbasins for the Period of Record Through 2005

Graphics of Streamflow and Nutrient Flux for the Iowa River at Wapello, Iowa

The following graphics depict annual flux of dissolved nitrite plus nitrate (figure 1), total nitrogen (figure 2), total phosphorus (figure 3), dissolved orthophosphate (figure 4), and dissolved silica (figure 5), along with concurrent annual streamflow for the Iowa River at Wapello, Iowa (Station ID 05465500).

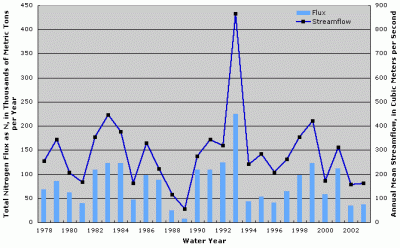

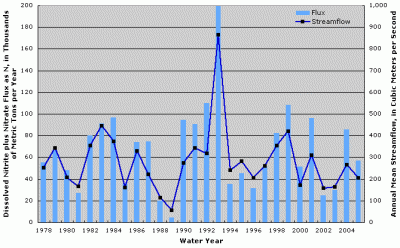

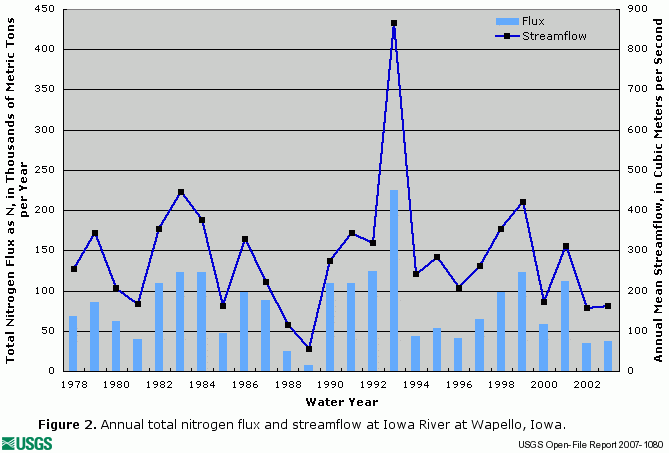

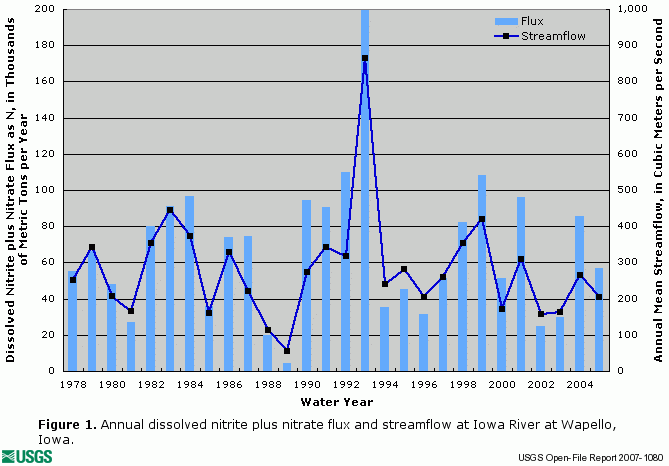

Figure 1. Annual dissolved nitrite plus nitrate flux and streamflow at Iowa River at Wapello, Iowa.	Figure 2. Annual total nitrogen flux and streamflow at Iowa River at Wapello, Iowa.

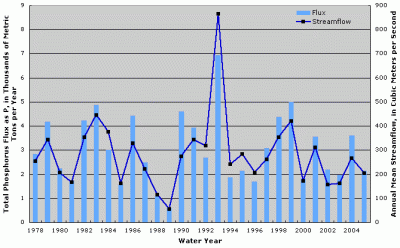

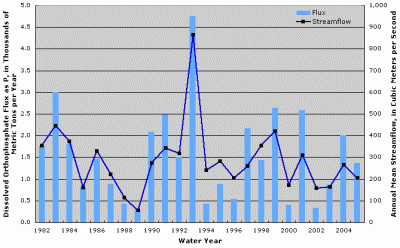

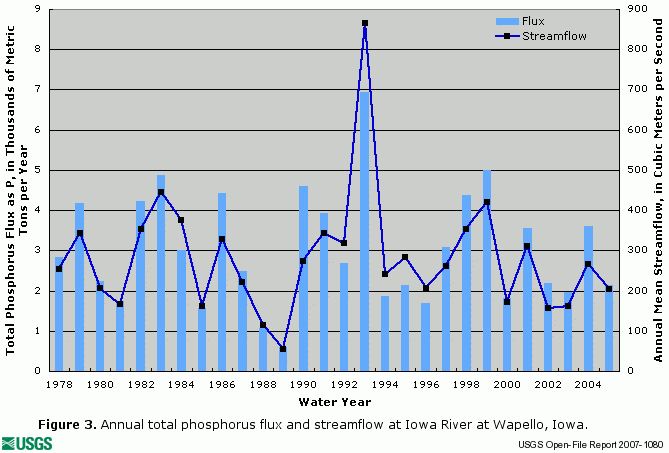

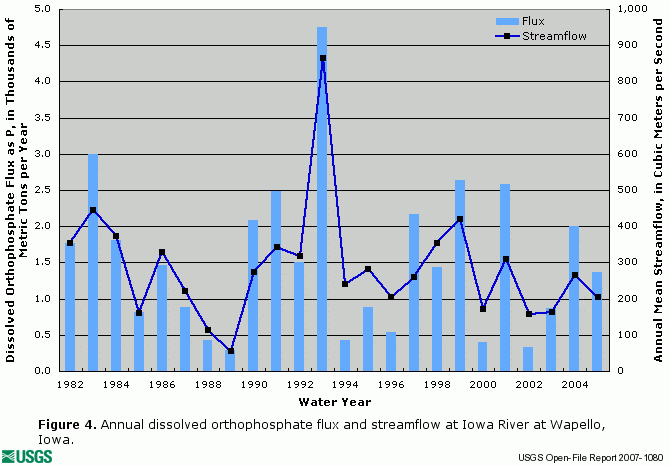

Figure 3. Annual total phosphorus flux and streamflow at Iowa River at Wapello, Iowa.	Figure 4. Annual dissolved orthophosphate flux and streamflow at Iowa River at Wapello, Iowa.

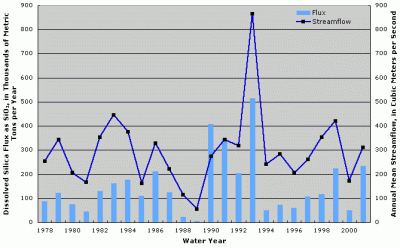

Figure 5. Annual dissolved silica flux and streamflow at Iowa River at Wapello, Iowa.

The data used to generate the above graphs are available on the following page.

• Streamflow and Nutrient Flux at Iowa River at Wapello, Iowa
