USGS Open-File Report 2007-1080 - Streamflow and Nutrient Fluxes of the Mississippi-Atchafalaya River Basin and Subbasins for the Period of Record Through 2005

Graphics of Streamflow and Nutrient Flux for the Kanawha River at Winfield, West Virginia

The following graphics depict annual flux of dissolved nitrite plus nitrate (figure 1), total nitrogen (figure 2), total phosphorus (figure 3), dissolved orthophosphate (figure 4), and dissolved silica (figure 5), along with concurrent annual streamflow for the Kanawha River at Winfield, West Virginia (Station ID 03201300).

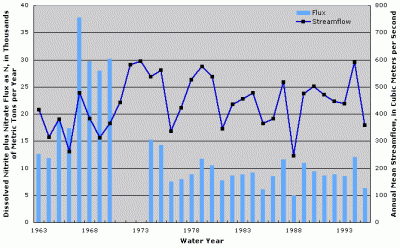

Figure 1. Annual dissolved nitrite plus nitrate flux at Kanawha River at Winfield, West Virginia. Annual streamflow data from Kanawha River at Charleston, West Virginia (USGS Station ID 03198000). Years with no fluxes shown indicate missing fluxes due to lack of water-quality data or flux estimation model convergence.	Figure 2. Annual total nitrogen flux at Kanawha River at Winfield, West Virginia. Annual streamflow data from Kanawha River at Charleston, West Virginia (USGS Station ID 03198000).

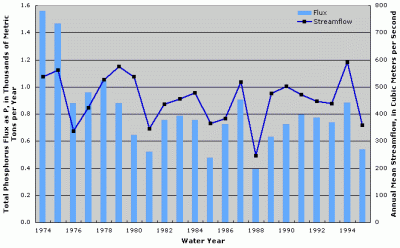

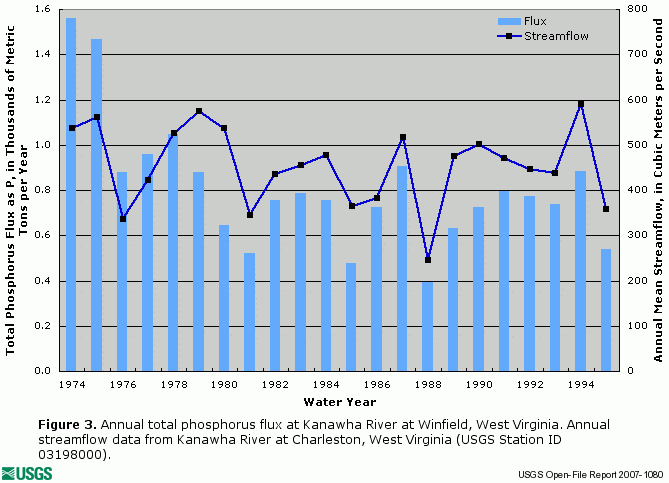

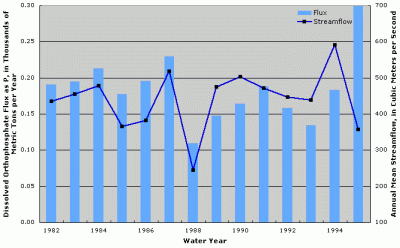

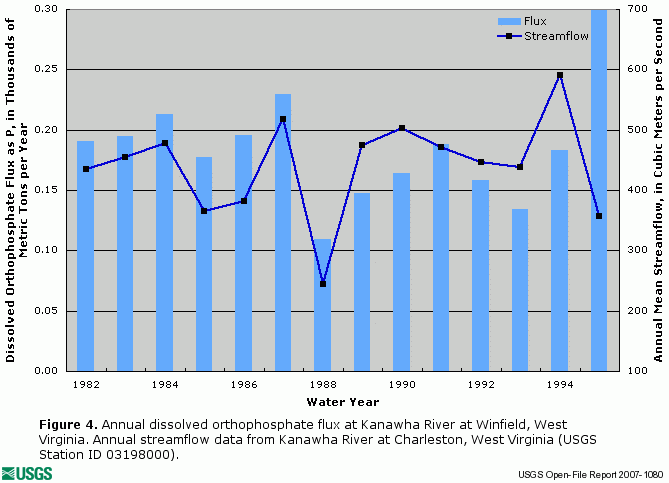

Figure 3. Annual total phosphorus flux at Kanawha River at Winfield, West Virginia. Annual streamflow data from Kanawha River at Charleston, West Virginia (USGS Station ID 03198000).	Figure 4. Annual dissolved orthophosphate flux at Kanawha River at Winfield, West Virginia. Annual streamflow data from Kanawha River at Charleston, West Virginia (USGS Station ID 03198000).
Figure 5. Annual dissolved silica flux at Kanawha River at Winfield, West Virginia. Annual streamflow data from Kanawha River at Charleston, West Virginia (USGS Station ID 03198000).

The data used to generate the above graphs are available on the following page.

• Streamflow and Nutrient Flux at Kanawha River at Winfield, West Virginia
