USGS Open-File Report 2007-1080 - Streamflow and Nutrient Fluxes of the Mississippi-Atchafalaya River Basin and Subbasins for the Period of Record Through 2005

Graphics of Streamflow and Nutrient Flux for the Missouri River at Garrison Dam, North Dakota

The following graphics depict annual flux of dissolved nitrite plus nitrate (figure 1), total nitrogen (figure 2), total phosphorus (figure 3), dissolved orthophosphate (figure 4), and dissolved silica (figure 5), along with concurrent annual streamflow for the Missouri River at Garrison Dam, North Dakota (Station ID 06338490).

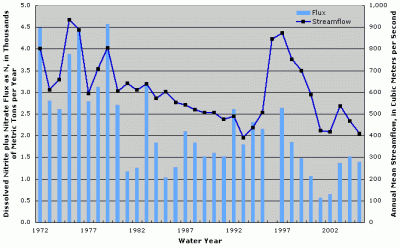

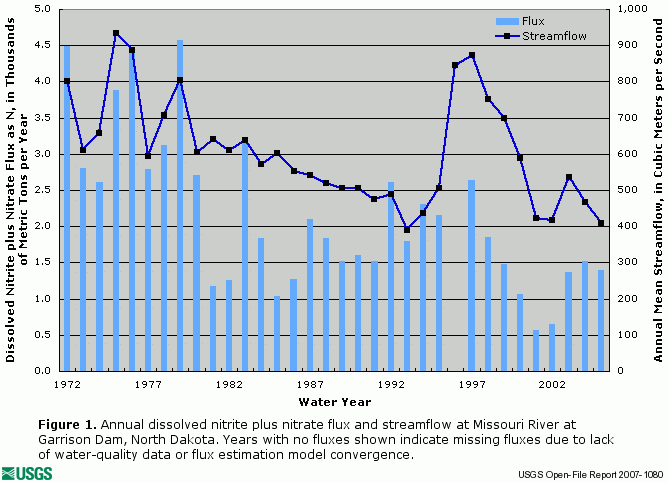

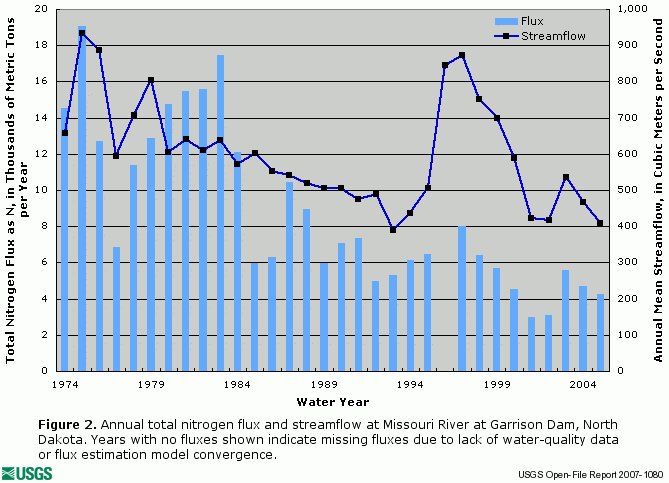

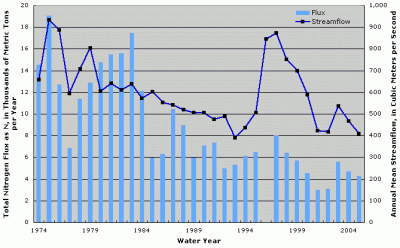

Figure 1. Annual dissolved nitrite plus nitrate flux and streamflow at Missouri River at Garrison Dam, North Dakota. Years with no fluxes shown indicate missing fluxes due to lack of water-quality data or flux estimation model convergence.	Figure 2. Annual total nitrogen flux and streamflow at Missouri River at Garrison Dam, North Dakota. Years with no fluxes shown indicate missing fluxes due to lack of water-quality data or flux estimation model convergence.

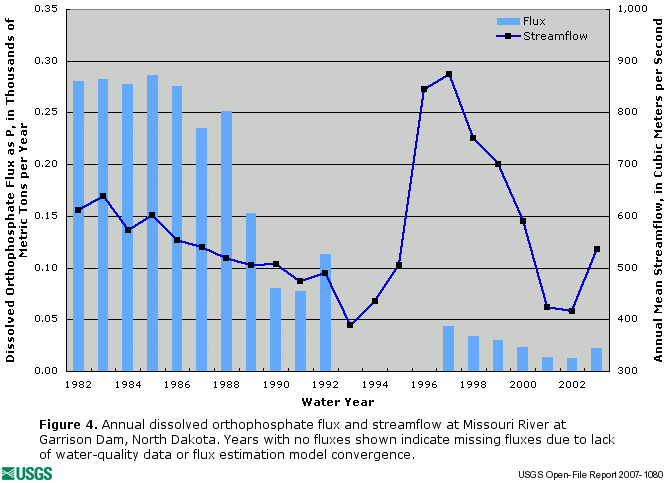

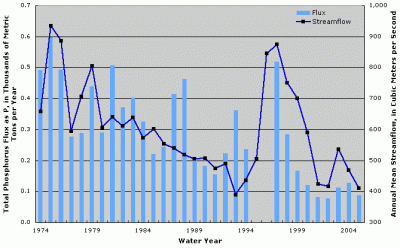

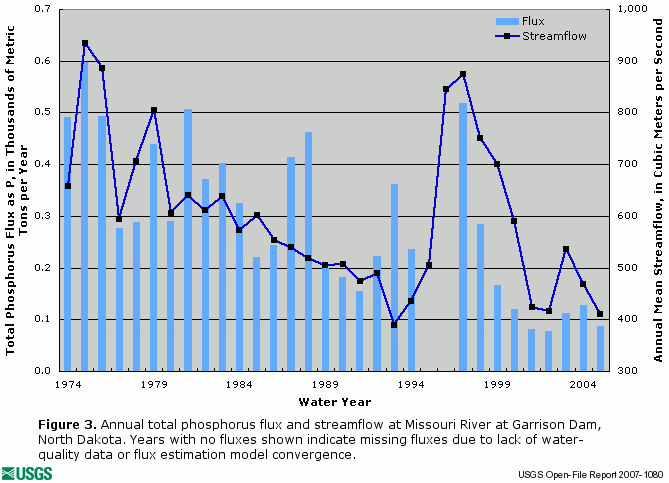

Figure 3. Annual total phosphorus flux and streamflow at Missouri River at Garrison Dam, North Dakota. Years with no fluxes shown indicate missing fluxes due to lack of water-quality data or flux estimation model convergence.	Figure 4. Annual dissolved orthophosphate flux and streamflow at Missouri River at Garrison Dam, North Dakota. Years with no fluxes shown indicate missing fluxes due to lack of water-quality data or flux estimation model convergence.

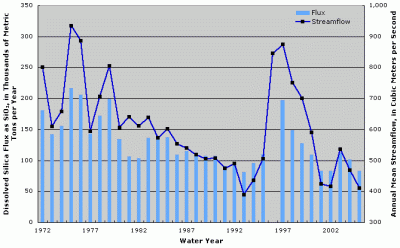

Figure 5. Annual dissolved silica flux and streamflow at Missouri River at Garrison Dam, North Dakota. Years with no fluxes shown indicate missing fluxes due to lack of water-quality data or flux estimation model convergence.

The data used to generate the above graphs are available on the following page.

• Streamflow and Nutrient Flux at Missouri River at Garrison Dam, North Dakota
