USGS Open-File Report 2007-1080 - Streamflow and Nutrient Fluxes of the Mississippi-Atchafalaya River Basin and Subbasins for the Period of Record Through 2005

Graphics of Streamflow and Nutrient Flux for the Wabash River at New Harmony, Indiana

The following graphics depict annual flux of dissolved nitrite plus nitrate (figure 1), total nitrogen (figure 2), total phosphorus (figure 3), dissolved orthophosphate (figure 4), and dissolved silica (figure 5), along with concurrent annual streamflow for the Wabash River at New Harmony, Indiana (Station ID 03378500).

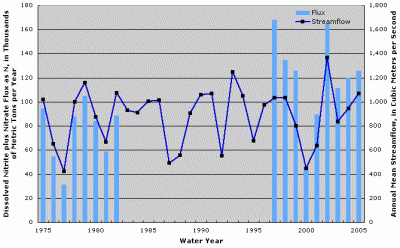

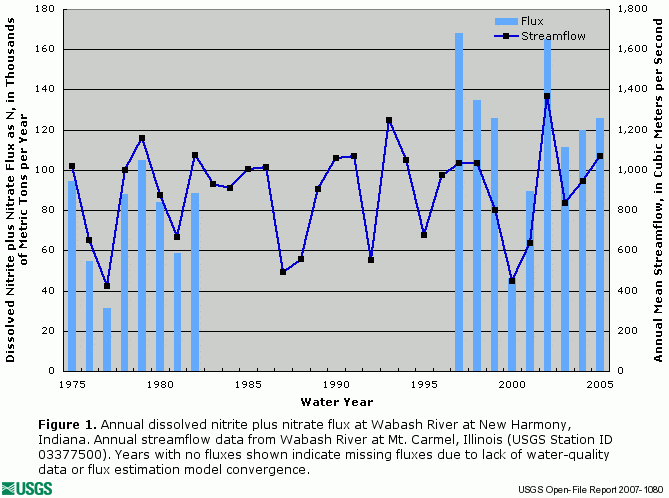

Figure 1. Annual dissolved nitrite plus nitrate flux at Wabash River at New Harmony, Indiana. Annual streamflow data from Wabash River at Mt. Carmel, Illinois (USGS Station ID 03377500). Years with no fluxes shown indicate missing fluxes due to lack of water-quality data or flux estimation model convergence.	Figure 2. Annual total nitrogen flux at Wabash River at New Harmony, Indiana. Annual streamflow data from Wabash River at Mt. Carmel, Illinois (USGS Station ID 03377500). Years with no fluxes shown indicate missing fluxes due to lack of water-quality data or flux estimation model convergence.

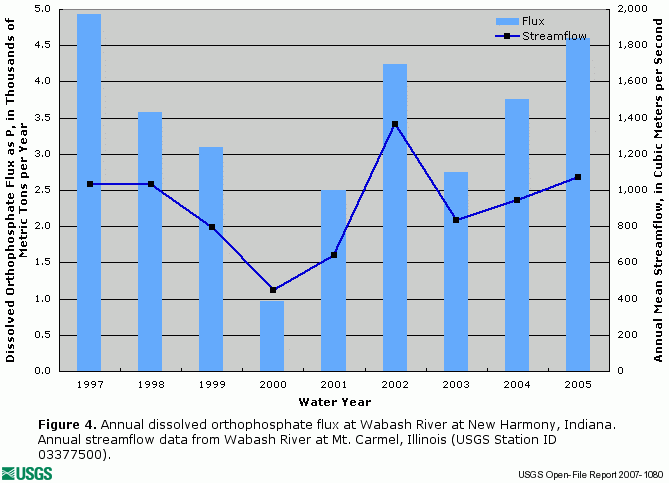

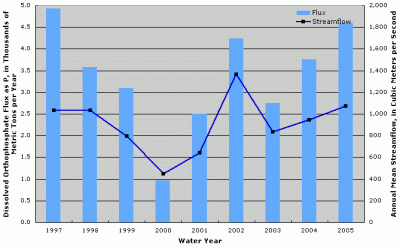

Figure 3. Annual total phosphorus flux at Wabash River at New Harmony, Indiana. Annual streamflow data from Wabash River at Mt. Carmel, Illinois (USGS Station ID 03377500). Years with no fluxes shown indicate missing fluxes due to lack of water-quality data or flux estimation model convergence.	Figure 4. Annual dissolved orthophosphate flux at Wabash River at New Harmony, Indiana. Annual streamflow data from Wabash River at Mt. Carmel, Illinois (USGS Station ID 03377500).

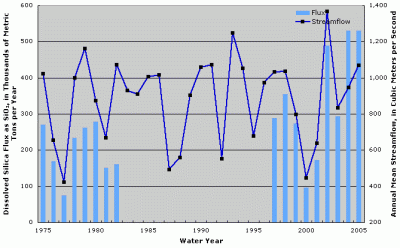

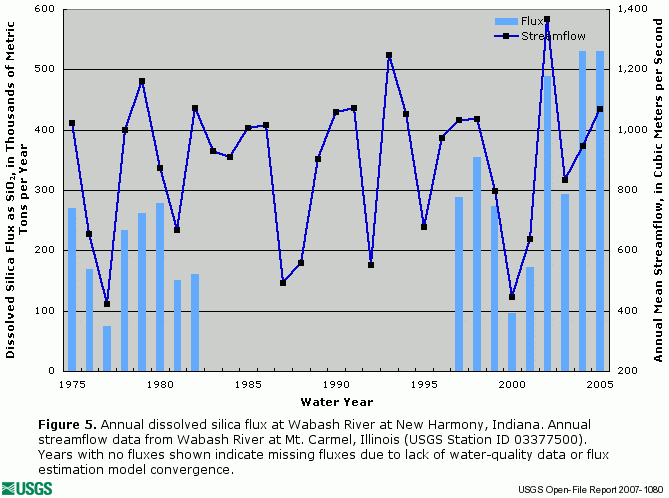

Figure 5. Annual dissolved silica flux at Wabash River at New Harmony, Indiana. Annual streamflow data from Wabash River at Mt. Carmel, Illinois (USGS Station ID 03377500). Years with no fluxes shown indicate missing fluxes due to lack of water-quality data or flux estimation model convergence.

The data used to generate the above graphs are available on the following page.

• Streamflow and Nutrient Flux at Wabash River at New Harmony, Indiana
