Assessment of Undiscovered Conventional Oil and Gas Resources in the Berkine, Illizi, Hamra, Murzuq, and Erdis Kufra Basins of Northern Africa, 2026
Links
- Document: Report (3.66 MB pdf) , HTML , XML
- Data Release: USGS data release - USGS National and Global Oil and Gas Assessment Project—Berkine, Illizi, Hamra, Murzuq, and Erdis Kufra Basins of Northern Africa—Assessment Unit Boundaries, Assessment Input Data, and Fact Sheet Data Tables
- Download citation as: RIS | Dublin Core
Abstract
Using a geology-based assessment methodology, the U.S. Geological Survey estimated undiscovered, technically recoverable mean conventional resources of 419 million barrels of oil and 5.5 trillion cubic feet of gas in the Berkine, Illizi, Hamra, Murzuq, and Erdis Kufra Basins of northern Africa.
Introduction
The U.S. Geological Survey (USGS) assessed the potential for undiscovered, technically recoverable conventional oil and gas resources in the Berkine, Illizi, Hamra, Murzuq, and Erdis Kufra Basins of northern Africa (fig. 1). During the early Paleozoic Era, northern Africa had a north-facing passive continental margin of the paleo-Tethys Ocean. Late Carboniferous to Permian contraction from the Hercynian orogeny—a series of continental and microplate collisions—reactivated regional fault systems that segmented the passive margin into a mosaic of basins and uplifts (Badalini and others, 2002; Dixon and others, 2010; Eschard and others, 2010; Galeazzi and others, 2010). The Berkine, Illizi, Hamra, Murzuq, and Erdis Kufra Basins and intervening Tihemboka Uplift, Talemzane Arch, Nefusn Uplift, and Qarqaf Arch resulted from the orogenic events. Silurian and Devonian source rocks deposited during the passive-margin phase are preserved in the basins but were largely eroded from the uplifts (Eschard and others, 2010). Variations in the magnitude of subsidence, uplift, and erosion among the basins led to temporal and spatial variations in thermal maturation of the source rocks (Underdown and Redfern, 2008; Bora and Dubey, 2015). In some basins, gas is interpreted to have been generated before or during Hercynian contraction, and in other basins, the source rocks reached the thermal window for oil or gas generation in the Mesozoic Era (Makhous and others, 1997; Boote and others, 1998; Davidson and others, 2000; Yahi and others, 2001; Makhous and Galushkin, 2003; Underdown and Redfern, 2008; Eschard and others, 2010; English and others, 2016; Jaeger and others, 2017).

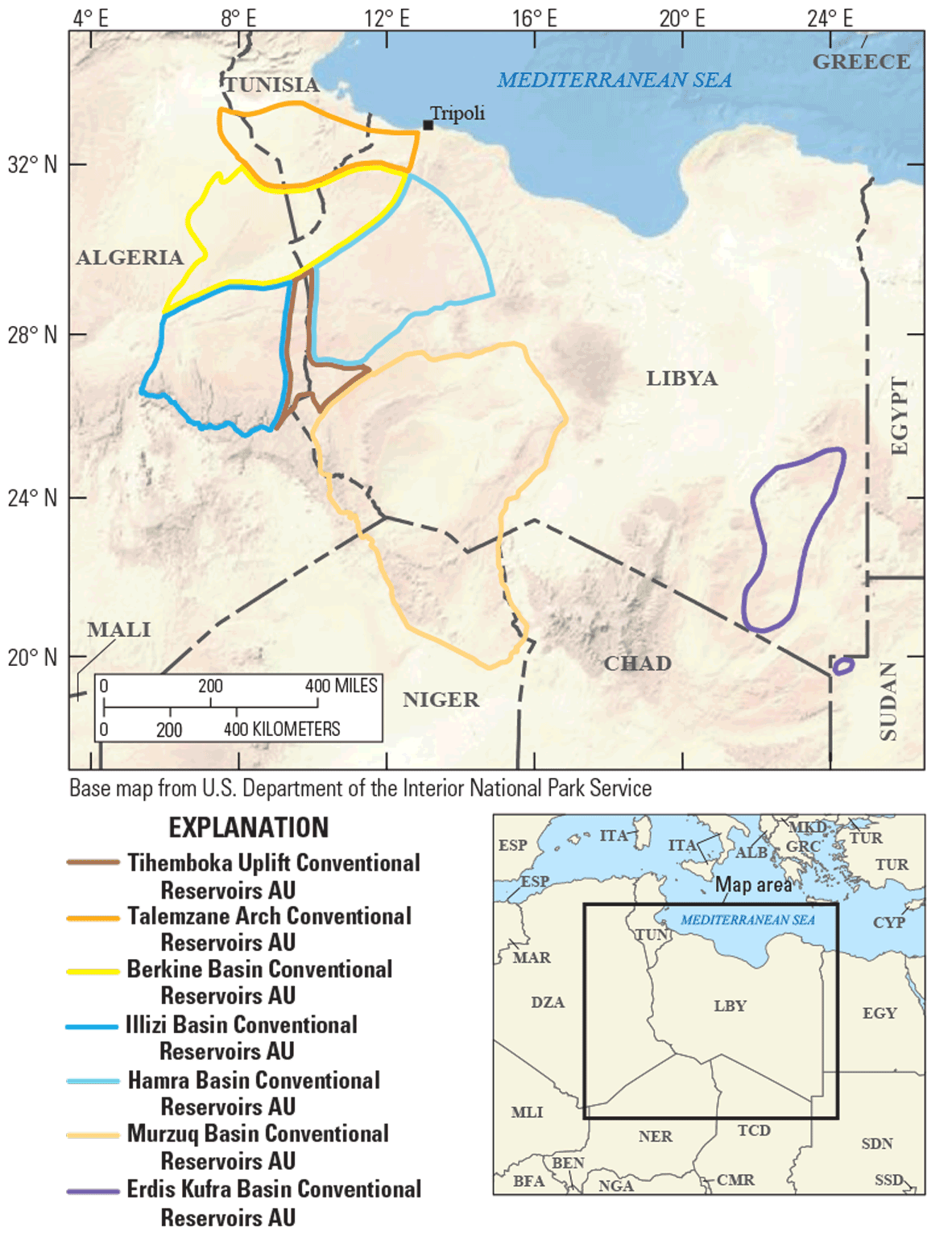

Map showing the location of seven conventional assessment units (AUs) in the Berkine, Illizi, Hamra, Murzuq, and Erdis Kufra Basins of northern Africa.
Total Petroleum System and Assessment Units
The USGS defined the Paleozoic Composite Total Petroleum System (TPS) in the Berkine, Illizi, Hamra, Murzuq, and Erdis Kufra Basins of northern Africa. Seven conventional assessment units (AUs) were defined within the TPS (table 1). The main source rocks for this composite system are the organic-rich lower Silurian Tanezzuft Shale (and equivalent shales; Boote and others, 1998; Cochran and Petersen, 2001; Hassan and Kendall, 2014; Albriki and others, 2024) and Upper Devonian Frasnian shales (Lüning and others, 2004; Hassan and Kendall, 2014; Albriki and others, 2024). Petroleum generated from these shales was combined into a composite TPS for this assessment. Silurian shales contain an average of 2 weight percent (wt. pct.) residual total organic carbon (TOC) with as much as 24 wt. pct., have initial hydrogen index values as much as 530 milligrams of hydrocarbon per gram of TOC, and have shale thickness as much as 100 meters (Lüning and others, 2000; Kaced and Arab, 2012; Arfaoui and others, 2024). Devonian shales contain as much as 3 wt. pct. residual TOC and have shale thickness as much as 80 meters (Kaced and Arab, 2012). The extent and thermal maturity of the source rocks in the Erdis Kufra Basin are not known (Lüning and others, 1999).
Table 1.
Key input data for seven conventional assessment units in the Berkine, Illizi, Hamra, Murzuq, and Erdis Kufra Basins of northern Africa.[Gray shading indicates not applicable. AU, assessment unit; MMBO, million barrels of oil; BCFG, billion cubic feet of gas]
The geologic model for the Paleozoic Composite TPS is for oil and gas to have been generated from Silurian and Devonian organic-rich shales, with generation possibly ranging from the Carboniferous through the Mesozoic. Oil and gas migrated into conventional reservoirs within stratigraphic and structural traps in the basins and migrated updip from the source rocks into conventional reservoirs along the flanks and crests of the intervening uplifts. Reservoirs in the basins and uplifts are characterized by complex spatial heterogeneity of facies and petrophysical properties (Dixon and others, 2010; Jabir and others, 2020). The assessment input data for the seven defined AUs are summarized in table 1 and Schenk (2026).
Undiscovered Resources Summary
The USGS quantitatively assessed undiscovered, technically recoverable conventional oil and gas resources in seven AUs (table 2) in the Berkine, Illizi, Hamra, Murzuq, and Erdis Kufra Basins of northern Africa. The estimated mean resources are 419 million barrels of oil (MMBO), with an F95 to F5 fractile range from 177 to 810 MMBO; 5,451 billion cubic feet of gas (BCFG), or 5.5 trillion cubic feet of gas, with an F95 to F5 fractile range from 3,556 to 7,919 BCFG; and 230 million barrels of natural gas liquids (MMBNGL), with an F95 to F5 fractile range from 152 to 335 MMBNGL.
Table 2.
Results for seven conventional assessment units in the Berkine, Illizi, Hamra, Murzuq, and Erdis Kufra Basins of northern Africa.[Gray shading indicates not applicable. Results shown are fully risked estimates. F95 represents a 95-percent chance of at least the amount tabulated; other fractiles are defined similarly. MMBO, million barrels of oil; BCFG, billion cubic feet of gas; NGL, natural gas liquids; MMBNGL, million barrels of natural gas liquids]
For More Information
Assessment results are also available at the USGS Energy Resources Program website, https://www.usgs.gov/programs/energy-resources-program.
References Cited
Albriki, K., Guoqi, W., Wang, F., El Zaroug, R., and Abdullah, A., 2024, Shale gas play of the Silurian hot shale, Ghadames Basin, North Africa—Insights from integrated geochemistry and basin modeling: Journal of African Earth Sciences, v. 210, article 105152, 34 p., accessed March 27, 2026, at https://doi.org/10.1016/j.jafrearsci.2023.105152.
Arfaoui, I., Hamdi, O., and Boulvain, F., 2024, Geochemical and mineralogical characterizations of Silurian “hot” shales—Implications for shale gas/oil reservoir potential in Jeffara basin—Southeastern Tunisia, North Africa: Journal of African Earth Sciences, v. 212, article 105213, 14 p., accessed March 27, 2026, at https://doi.org/10.1016/j.jafrearsci.2024.105213.
Badalini, G., Redfern, J., and Carr, I.D., 2002, A synthesis of current understanding of the structural evolution of North Africa: Journal of Petroleum Geology, v. 25, no. 3, p. 249–258, accessed March 27, 2026, at https://doi.org/10.1111/j.1747-5457.2002.tb00008.x.
Boote, D.R.D., Clark-Lowes, D.D., and Traut, M.W., 1998, Paleozoic petroleum systems of North Africa, in MacGregor, D.S., Moody, R.T.J., and Clark-Lowes, D.D., eds., Petroleum geology of North Africa: Geological Society of London Special Publication 132, p. 7–68, accessed March 27, 2026, at https://doi.org/10.1144/GSL.SP.1998.132.01.02.
Bora, D., and Dubey, S., 2015, New insight on petroleum system modeling of Ghadames Basin, Libya: Journal of African Earth Sciences, v. 112, pt. A, p. 111–128, accessed March 27, 2026, at https://doi.org/10.1016/j.jafrearsci.2015.08.020.
Cochran, M.D., and Petersen, L.E., 2001, Hydrocarbon exploration in the Berkine Basin, Grand Erg Oriental, Algeria, chap. 26 of Downey, M.W., Threet, J.C., and Morgan, W.A., eds., Petroleum provinces of the twenty-first century: AAPG Memoir 74, p. 531–557, accessed March 27, 2026, at https://doi.org/10.1306/M74775C26.
Davidson, L., Beswetherick, S., Craig, J., Eales, M., Fisher, A., Himmali, A., Jho, J., Mejrab, B., and Smart, J., 2000, The structure, stratigraphy and petroleum geology of the Murzuq Basin, southwest Libya, chap. 14 of Sola, M.A., and Worsley, D., eds., Geological exploration in Murzuq Basin: Elsevier, p. 295–320, accessed March 27, 2026, at https://doi.org/10.1016/B978-044450611-5/50016-7.
Dixon, R.J., Moore, J.K.S., Bourne, M., Dunn, E., Haig, D.B., Hossack, J., Roberts, N., Parsons, T., and Simmons, C.J., 2010, Integrated petroleum systems and play fairway analysis in a complex Paleozoic basin—Ghadames-Illizi Basin, North Africa, in Vining, B.A., and Pickering, S.C., eds., Petroleum geology—From mature basins to new frontiers—Proceedings of the 7th Petroleum Geology Conference, London, England, March 30–April 2, 2009: Geological Society of London Petroleum Geology Conference Series, v. 7, p. 735–760, accessed March 27, 2026, at https://doi.org/10.1144/0070735.
English, K.L., Redfern, J., Corcoran, D.V., English, J.M., and Cherif, R.Y., 2016, Constraining burial history and petroleum charge in exhumed basins—New insights from the Illizi Basin, Algeria: AAPG Bulletin, v. 100, no. 4, p. 623–655, accessed March 27, 2026, at https://doi.org/10.1306/12171515067.
Eschard, R., Braik, F., Bekkouche, D., Ben Rahuma, M., Desaubliaux, G., Deschamps, R., and Proust, J.N., 2010, Paleohighs—Their influence on the North African Paleozoic petroleum systems, in Vining, B.A., and Pickering, S.C., eds., Petroleum geology—From mature basins to new frontiers—Proceedings of the 7th Petroleum Geology Conference, London, England, March 30–April 2, 2009: Geological Society of London Petroleum Geology Conference Series, v. 7, p. 707–724, accessed March 27, 2026, at https://doi.org/10.1144/0070707.
Galeazzi, S., Point, O., Haddadi, N., Mather, J., and Druesne, D., 2010, Regional geology and petroleum systems of the Illizi–Berkine area of the Algerian Saharan platform—An overview: Marine and Petroleum Geology, v. 27, no. 1, p. 143–178, accessed March 27, 2026, at https://doi.org/10.1016/j.marpetgeo.2008.10.002.
Hassan, H.S., and Kendall, C.C.G., 2014, Hydrocarbon provinces of Libya—A petroleum system study, chap. 4 of Marlow, L., Kendall, C., and Yose, L., eds., Petroleum systems of the Tethyan region: AAPG Memoir 106, p. 101–141, accessed March 27, 2026, at https://doi.org/10.1306/13431855M1063608.
Jabir, A., Cerepi, A., Loisy, C., and Rubino, J.-L., 2020, Stratigraphy, sedimentology and paleogeography of a Paleozoic succession, Ghadames and Jefarah basin, Libya and Tunisia: Journal of African Earth Sciences, v. 163, article 103642, 22 p., accessed March 27, 2026, at https://doi.org/10.1016/j.jafrearsci.2019.103642.
Jaeger, H., Bechstaedt, T., and Mohr, M., 2017, Multi-phase thermal history of Paleozoic basins in NW-Africa (Algeria, Morocco) and its impact on hydrocarbon system development [abs.]: AAPG Search and Discovery, article 90313, accessed May 11, 2026, at https://www.searchanddiscovery.com/abstracts/pdf/2018/90313ar/abstracts/ndx_jaeger.pdf?q=%2BauthorStrip%3Ajaeger.
Kaced, M., and Arab, M., 2012, The potential of shale gas plays in Algeria—25th World Gas Conference, Kuala Lumpur, Malaysia, June 4–8, 2012: International Gas Union, 18-slide presentation, accessed May 11, 2026, at https://doi.org/10.13140/RG.2.1.4197.4480.
Lüning, S., Craig, J., Fitches, B., Mayouf, J., Busrewil, A., El Dieb, M., Gammudi, A., Loydell, D., and McIlroy, D., 1999, Re-evaluation of the petroleum potential of the Kufra Basin (SE Libya, NE Chad)—Does the source rock barrier fall?: Marine and Petroleum Geology, v. 16, no. 7, p. 693–718, accessed March 27, 2026, at https://doi.org/10.1016/S0264-8172(99)00013-6.
Lüning, S., Craig, J., Loydell, D.K., Štorch, P., and Fitches, B., 2000, Lower Silurian ‘hot shales’ in North Africa and Arabia—Regional distribution and depositional model: Earth-Science Reviews, v. 49, nos. 1–4, p. 121–200, accessed March 27, 2026, at https://doi.org/10.1016/S0012-8252(99)00060-4.
Lüning, S., Wendt, J., Belka, Z., and Kaufmann, B., 2004, Temporal–spatial reconstruction of the early Frasnian (Late Devonian) anoxia in NW Africa—New field data from the Ahnet Basin (Algeria): Sedimentary Geology, v. 163, nos. 3–4, p. 237–264, accessed March 27, 2026, at https://doi.org/10.1016/S0037-0738(03)00210-0.
Makhous, M., and Galushkin, Y.I., 2003, Burial history and thermal evolution of the southern and western Saharan basins—Synthesis and comparison with the eastern and northern Saharan basins: AAPG Bulletin, v. 87, no. 11, p. 1799–1822, accessed March 27, 2026, at https://doi.org/10.1306/06180301123.
Makhous, M., Galushkin, Y., and Lopatin, N., 1997, Burial history and kinetic modeling for hydrocarbon generation, part II—Applying the GALO model to Saharan basins: AAPG Bulletin, v. 81, no. 10, p. 1679–1699, accessed March 27, 2026, at https://doi.org/10.1306/3B05C41A-172A-11D7-8645000102C1865D.
Schenk, C.J., 2026, USGS National and Global Oil and Gas Assessment Project—Berkine, Illizi, Hamra, Murzuq, and Erdis Kufra Basins of northern Africa—Assessment unit boundaries, assessment input data, and fact sheet data tables: U.S. Geological Survey data release, https://doi.org/10.5066/P13QH5VP.
Underdown, R., and Redfern, J., 2008, Petroleum generation and migration in the Ghadames Basin, North Africa—A two-dimensional basin-modeling study: AAPG Bulletin, v. 92, no. 1, p. 53–76, accessed March 27, 2026, at https://doi.org/10.1306/08130706032.
Yahi, N., Schaefer, R.G., and Littke, R., 2001, Petroleum generation and accumulation in the Berkine Basin, eastern Algeria: AAPG Bulletin, v. 85, no. 8, p. 1439–1467, accessed March 27, 2026, at https://doi.org/10.1306/8626CAD7-173B-11D7-8645000102C1865D.
Disclaimers
Any use of trade, firm, or product names is for descriptive purposes only and does not imply endorsement by the U.S. Government.
Although this information product, for the most part, is in the public domain, it also may contain copyrighted materials as noted in the text. Permission to reproduce copyrighted items must be secured from the copyright owner.
Suggested Citation
Schenk, C.J., Mercier, T.J., Woodall, C.A., Finn, T.M., Leathers-Miller, H.M., Brownfield, M.E., Le, P.A., Gaswirth, S.B., and Tennyson, M.E., 2026, Assessment of undiscovered conventional oil and gas resources in the Berkine, Illizi, Hamra, Murzuq, and Erdis Kufra Basins of northern Africa, 2026: U.S. Geological Survey Fact Sheet 2026–3009, 4 p., https://doi.org/10.3133/fs20263009.
