Forecasting Volcanic Activity in Germany—A Multi-Criteria Approach
Links
- Document: Report (22.5 MB pdf) , HTML , XML
- Larger Work: This publication is Chapter C of Distributed volcanism—Characteristics, processes, and hazards
- Download citation as: RIS | Dublin Core
Acknowledgments
We highly appreciate the detailed comments by Brittain Hill, Chuck Connor, and an anonymous reviewer, which helped to improve the paper significantly. Funding was provided by the Federal Institute for Geosciences and Natural Resources, Germany.
Abstract
Igneous activity, including shallow intrusions and volcanism, has the potential to disrupt underground critical infrastructure. Notably, future underground infrastructure projects like high-level radioactive waste repositories must be sited in areas of extremely low disruption probability by igneous activity. In Germany, according to the Repository Site Selection Act of 2017 (Standortauswahlgesetz, or StandAG), areas in which Quaternary volcanism is either present or future volcanic activity is expected within the next 1 million years (m.y.) must be excluded from the site selection process. Although the locations of regions with Quaternary volcanism are reasonably well known in Germany, forecasting potential igneous activity at intraplate volcanic fields is challenging, as many processes and their interactions control the spatial distribution of volcanic centers. Here, a semi-quantitative, multi-criteria approach is proposed for a regional evaluation of the relative potential of future igneous activity in Germany. A variety of geoscientific indicators are used, including seismic anomalies in Earth’s mantle, gravity data, tectonic activity, sutures, ground motion, earthquakes, mantle degassing centers, and geochronological data of volcanic rocks. The indicators describe the sequence of processes from potential melt generation in Earth’s mantle, through ascent and accumulation of melt within the lithosphere, to eruption at Earth’s surface. In total, 15 out of 30 proposed geoscientific indicators are selected and quantified using 20 total assigned parameters. Defined threshold values are used to spatially delimit relevant parameter properties to focus on areas with higher potential of future magmatic activity. To consider uncertainties of parameters and their underlying processes, which are usually more spatially extensive below ground, buffer zones are defined in which values of relevance decrease with increasing distance from the initial lateral shape of a parameter. Normalized parameters are combined into an index, whose spatial value distribution is used to differentiate the relative potential of future igneous activity (within the next 1 m.y.). The sensitivity of the results is shown by varying the weighting factors for the relevant parameters in country-wide index maps. Thereby, profiles illustrate the distribution of the resulting index values and respective index fractions of various parameters. Different index maps for the relative potential of future igneous activity are presented and can be used for hazard assessments.
Introduction
Igneous activity must be evaluated critically when looking for a repository location for high-level radioactive waste (HLW) in deep geological formations. HLW, such as waste from nuclear power plants, must be isolated to protect people and the environment from harmful radiation. Many nations have elected to pursue isolation of HLW in underground repositories. Such repositories are expected to operate for hundreds of years, after which they will be permanently closed and the HLW will be inaccessible as the radioactive material decays to safe background levels over hundreds of thousands of years. To ensure the long-term stability of an underground repository site for HLW, areas that might be affected by future igneous activity must be excluded from consideration (International Atomic Energy Agency [IAEA], 2016; Bundesgesellschaft für Endlagerung [BGE], 2020, 2022b). Considering the local geology, storage concepts, and technical feasibility of construction, repository mines are recommended to be built at depths between 300 meters (m) and 1,500 m below surface (BGE, 2020). Additionally, HLW must be retrievable for the duration of repository operation and up to 500 years after closure. In Germany, according to the Repository Site Selection Act of 2017 (Standortauswahlgesetz, referred to herein as “StandAG, 2017”)1 , areas in which either Quaternary volcanism is present or future volcanic activity is expected in the next 1 million years (m.y) must be excluded from the site selection process. No specific criteria for the term “expected” are given in the description of the repository site criteria within the StandAG; however, the long-term protection for society and the environment against ionizing radiation and other harmful effects of radioactive waste must be guaranteed for the next 1 m.y. (StandAG, 2017). Although Quaternary volcanic activity has been identified by previous geological mapping and geochronological data (for example, the Geological Map of the Federal Republic of Germany [GÜK250; BGR, 2019]; Wilson and Downes, 2006; and references therein), forecasting potential igneous activity is more challenging, especially if past eruptions occurred long before the Quaternary and volcanic fields became active again after several million years of quiescence. To consider the potential resurgence of volcanism in different regions of Germany, this report includes the complete spatiotemporal sequence of Cenozoic volcanism for hazard assessment of potential future igneous activity.
Worldwide, quantitative probability analyses of volcanic hazards are available for individual Quaternary volcanic fields (Weller and others, 2006; Connor and others, 2009; IAEA, 2016; Marrero and others, 2019; Ang and others, 2020). Also, forecasting the activity and general behavior of large, already existing polygenetic volcanoes such as stratovolcanoes or shield volcanoes is possible; these volcanoes may be active over tens to hundreds of thousands of years and their history can therefore be studied extensively (for instance, Ubide and Kamber, 2018). Monitoring volcanic unrest with geophysical methods can only provide information on imminent volcanic eruptions usually on the timescale of days to months (Deligne and others, 2018; Carlino, 2019; Barsotti and others, 2023; Eckel and others, 2023)—much less than the time needed to retrieve HLW from a threatened repository. Different precursory phenomena, such as changes in seismic activity, ground deformation, gravity and temperature, magnetic and electric fields, or gas flows and concentrations are observed over the span of several years, but usually only experience drastic changes minutes to months before an eruption. The ascent of primitive magmas from Earth’s mantle to the surface can occur within hours to days (O’Reilly and Griffin, 2010). The time between eruptions of a single volcano can be days (Passarelli and Brodsky, 2012) or even thousands of years (Connor and others, 2006). In distributed volcanic fields, recurrence rates are low (10−4 to 10−5 vents per year) compared to the longevity of the fields (105 to 106 years) (Molloy and others, 2009). Investigations by Rout and Wörner (2020) on igneous rocks of the Laacher See volcano in Germany reveal that during the entire lifespan of the underlying magma reservoir, a timespan tens of thousands of years, there was periodic recharge with no eruptions until recently, in the late Pleistocene. Consequently, the absence of historical (or even Holocene) activity or unrest is not an accurate measure of potential for future igneous activity during the next 1 m.y.
Forecasting the timing and location of eruptions in monogenetic volcanic fields, like those in Germany, are challenging because of their short-lived activity and the numerous geodynamic processes and structural influences of overlying continental crust on melt migration. In addition, most intraplate volcanic systems are distributed over large areas, and new eruptions almost always occur at localities that have not previously experienced volcanic activity (Connor and others, 2019). Recent studies on forecasting new vent formation in young monogenetic volcanic fields focus on regions in which the spatiotemporal distribution of former eruptions is well known (Connor and others, 2009; El Difrawy and others, 2013; Germa and others, 2013; Bartolini and others, 2015; Galindo Jiménez and others, 2016; Mazzarini and others, 2016; van den Hove and others, 2017). Kernel density estimation is a statistical method widely used to calculate probable locations of eruptive vents (Connor and others, 2019); however, this method requires sufficient knowledge of the spatial and temporal distribution of vent localities within a certain volcanic field. This knowledge is not given for most of the volcanic fields in Germany, especially for older fields where volcanic rocks have been subjected to strong erosion and for which the recurrence rate of eruptions is uncertain. Given that many complex processes control the occurrence of volcanic vents in intraplate settings, additional geoscientific indicators, such as seismic anomalies, tectonic activity, ground motion, earthquakes, and mantle degassing centers must be considered for forecasting igneous activity. These indicators may provide information about recent or possible future processes connected to magmatic activity and its potential to culminate in an eruption.
Jentzsch (2001, 2013) proposed spatially differentiating areas within the Quaternary East and West Eifel volcanic fields in western Germany and Saxony and its surroundings in eastern Germany (fig. 1) by their respective likelihoods of future volcanic activity on the basis of different geoscientific indicators. A similar approach was taken by Schreiber and Jentzsch (2021) for Germany as a whole. Based on the distribution of Cenozoic igneous rocks and occurrence of different indicators (for example, swarm earthquakes, seismic low velocity anomalies in the mantle, helium isotopes in fluids with mantle signature, the occurrence of mofettes [CO2-rich gas emanation] and bicarbonate water), Schreiber and Jentzsch (2021) defined areas with different relative probabilities of possible future volcanism by unequal evaluation of individual indicators and regions. In contrast, the multi-criteria approach proposed here considers more geoscientific indicators, which are processed for Germany as a whole to ensure a fair and unbiased procedure for all federal states. The spatiotemporal history of igneous activity within individual volcanic fields therefore only contributes proportionally to the multi-criteria approach (with 2 geoscientific indicators out of 14, table 1) and thus to the overall hazard assessment.
Geological Background
The Cenozoic volcanic fields in Germany are part of the much larger European Cenozoic Volcanic Province, which extends over approximately 1,200 kilometers (km) from France (Massif Central) through central Germany to the Czech Republic and Poland. According to the geological map GÜK250 and the charted igneous rocks therein (BGR, 2019), the Cenozoic volcanic fields in Germany form several groups within the European Cenozoic Volcanic Province (fig. 1). The northern volcanic fields present an extensive volcanic belt that runs in an easterly direction, parallel to the deformation front of the Alps, from the Eifel, Siebengebirge and Westerwald over the Vogelsberg, the Hessian Depression, the Rhön and Heldburger Gangschar to the complex volcanic fields of the Eger Rift and southwestern Poland (Schreiber and Jentzsch, 2021). To the south, individual occurrences of igneous rocks follow along the Upper Rhine Graben and within the adjacent areas of exposed Paleozoic basement rocks. The smaller Hegau, Urach, and Kaiserstuhl volcanic fields form a second belt close to the Alps (fig. 1).

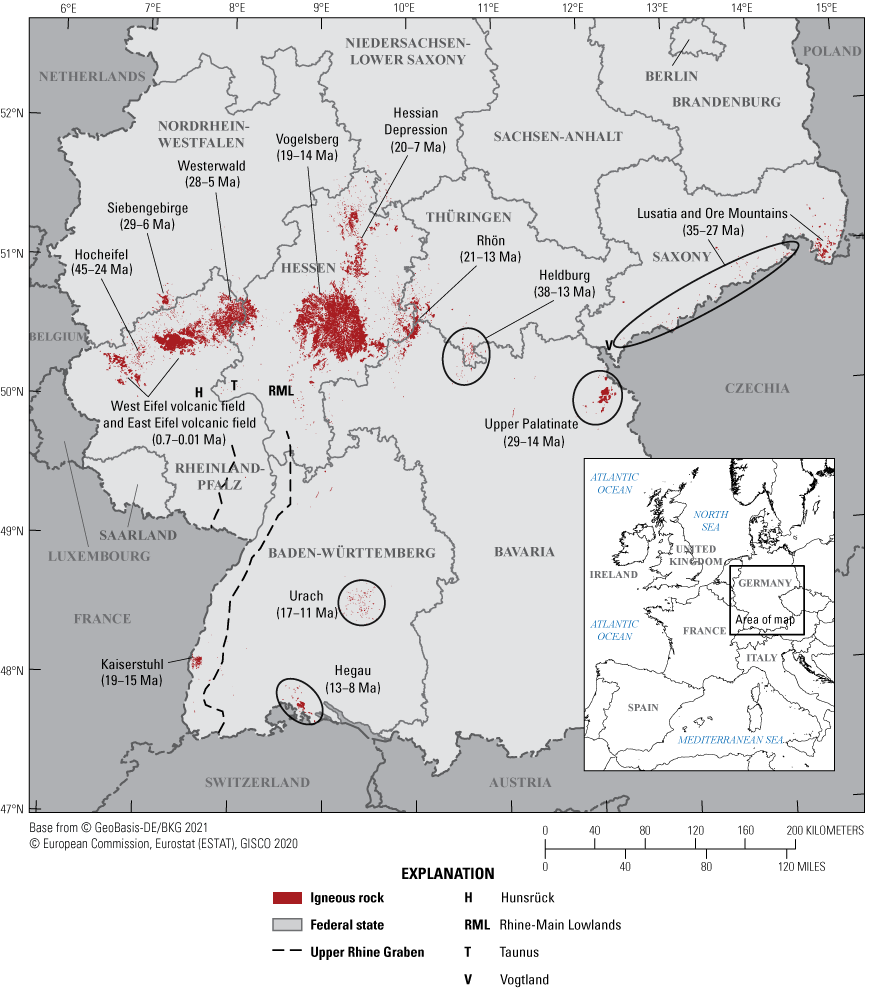

Map showing the location of Cenozoic igneous rocks in Germany and their ages (in millions of years) within volcanic fields. Ages are based on geochronological data (see compilation in Rummel and others, 2021b). Distribution of igneous rocks according to the geological map GÜK250 (BGR, 2019).
In Germany, the volcanic activity of the European Cenozoic Volcanic Province started during the Late Cretaceous to early Paleocene, with isolated volcanic activity along the Upper Rhine Graben and southwest of the Vogelsberg (Horn and others, 1972; Schmitt and others, 2007; Martha and others, 2014; Nesbor, 2018). In the middle Eocene, volcanism started in the Hocheifel volcanic field, where it lasted until the late Oligocene and was characterized by two activity maxima during 44–39 mega-annum (million years before present, Ma) and 37–35 Ma (Fekiacova and others, 2007). The second period coincides with the first phase of volcanic activity (38–25 Ma) in the Heldburger Gangschar volcanic field (Pfänder and others, 2018), as well as volcanism within the Lusatia volcanic field and the Ore Mountains (35–27 Ma; Abratis and others, 2015; Büchner and others, 2015), the latter associated with the main phase of volcanic activity in the Eger Rift. In the period between 29 and 14 Ma, a peak of volcanic activity in Central Europe, volcanism developed in the Upper Palatinate region (Todt and Lippolt, 1975; Ackerman and others, 2013) and the main parts of Siebengebirge and Westerwald volcanic fields (Lippolt, 1976; Lippolt and Todt, 1978; Turk and others, 1984; Przybyla and others, 2017), followed by the Rhön volcanic field (21–13 Ma; Lippolt, 1983), the Vogelsberg volcanic field (19–14 Ma; van den Bogaard and others, 2001; Turk and others, 1984) and volcanism in the Hessian Depression (20–7 Ma; Wedepohl and others, 1994). Concurrently and following, the second phase of activity in the Heldburger Gangschar volcanic field began (16–13 Ma; Abratis and others, 2007). Around the same time, activity commenced at the Kaiserstuhl volcanic field (19–15 Ma), in the Hegau volcanic field (13–8 Ma), and around Bad Urach (17–11 Ma) in southern Germany (Lippolt and others, 1963; Weiskirchner, 1972; Baranyi and others, 1976; Kröchert and others, 2009; Rahn and Handt, 2013; Schmid and others, 2014; Binder and others, 2022).
From the late Miocene to early Pliocene, a second phase of volcanic activity developed in the Westerwald volcanic field and within the area between Westerwald and Siebengebirge (Lippolt, 1976; Turk and others, 1984). In addition, two Quaternary events in the Westerwald volcanic field are assigned in the literature to the Quaternary volcanism of the Eifel volcanic fields (Lippolt and Todt, 1978). During the Quaternary, volcanism revived and formed the separate East and West Eifel volcanic fields, with the most recent activity in the East Eifel volcanic field at around 12.9 thousand years before present (ka; Laacher See) and the most recent activity in the West Eifel volcanic field at around 11 ka (Ulmener Maar) (Brauer and others, 2000). Additionally, some Quaternary eruption centers also formed in the Tertiary Hocheifel volcanic field, between the focal points for the eruptions of the East and West Eifel volcanic fields, as well as in the region of Upper Palatinate close to the border between Germany and the Czech Republic.
Presently, no scientific consensus exists on the underlying mechanisms and causes of igneous activity in Germany during the Cenozoic. The temporal and spatial distribution of volcanic fields, however, show that volcanism repeatedly shifted during the Cenozoic and in some cases reactivated within individual volcanic fields after long periods of quiescence (for example, the Eifel and Westerwald volcanic fields). This observed activity indicates a dynamic, long-lasting, and potentially reactivable magmatic system. The nature of this magmatic system necessitates the inclusion of the complete spatiotemporal sequence of Cenozoic volcanism in the hazard assessment of future igneous activity for the next 1 m.y., though this inclusion does not imply future activity exclusively occurring within known volcanic fields; new volcanic fields may form elsewhere or activity may resume in existing Quaternary fields during the next 1 m.y. Using the proposed multi-criteria approach, where all assigned parameters of the indicators are combined into an overall hazard index (see “Methods” section), the distribution of past eruptions represents a small fraction of the calculated index (see also “Parameter Components of the Index Values” section). Therefore, past, especially Tertiary, igneous activity might only become relevant if additional parameters used within this report point to potential future igneous activity.
Methods
Quantification of Indicators Using Assigned Parameters
To spatially differentiate the relative potential of future igneous activity in Germany, a variety of geoscientific indicators were used in a multi-criteria approach. Geoscientific indicators, referred to hereinafter as indicators, were identified considering the results of a proposal about the forecast of volcanic activity in Germany by using and evaluating existing data for volcanism related processes (May, 2019) and two expert surveys (Bartels and others, 2020; Rummel and others, 2021a). The purpose of these surveys was to gain an understanding of the scientific consensus and existing knowledge gaps concerning magmatism and volcanism in Germany, and decisions about the exclusion of regions in the site selection process for a HLW repository. Further, the experts were asked to rate the relevance of possible indicators regarding forecasts of volcanic activity in Germany. In these surveys, a total of 30 indicators were suggested that provided information about past and possibly recent magmatic processes and geological conditions that might indicate the potential for future eruptions.
Although all identified indicators are assumed to provide valid insight into forecasting eruptions in the next 1 m.y., suitable data are still needed to quantify the indicators across Germany. Considering both validity and availability of data, 15 suitable indicators were identified for use in the multi-criteria approach, and each indicator was quantified using at least one parameter (20 parameters in total for all indicators, tables 1 and 1.1). It should be noted, however, that the two indicators “distribution of Cenozoic volcanic fields and volcanic rocks” and “isolated Cenozoic volcanoes” within the 30 indicators proposed by Rummel and others (2021a) were combined into a single indicator, “distribution of Cenozoic volcanic fields and rocks” (table 1). The indicators reflect a complete magmatic lifespan (later also referred to as a process chain) from (1) potential melt generation in Earth’s mantle, (2) ascent of melt through the lithosphere, and (3) eruption at Earth’s surface. To enable a comprehensive assessment of potential future igneous activity, the parameters were processed and applied to all federal states of Germany. Parameter values were assigned to a 1 km by 1 km spatial grid that covers the entire country. Some parameters, such as seismic anomalies (ΔVs, ΔVp), vary continuously, whereas others vary categorically, such as distribution of bicarbonate springs. Continuous variables may have an assigned value of 0 where data are unavailable. For categorical variables, a value of 0 indicates the respective feature is absent.
The multi-criteria approach is based on an independent consideration of all indicators and related parameters; therefore, the forecast is thought to be unbiased with regards to the distribution of past volcanic eruptions, as future igneous activity may occur elsewhere in and around distributed volcanic fields. The multi-criteria approach is thus based on a variety of overlapping parameters and can be applied as long as the parameters from all critical steps of the process chain are considered.
Table 1.
Quantifiable parameters for indicators of volcanic activity across Germany.[∆Vp and ∆Vs, seismic velocities of primary and secondary waves relative to horizontal mean; DLF, deep low frequency; LAB, lithosphere-asthenosphere boundary; σ3, minimum principal stress; Moho, Mohorovičić discontinuity; He, helium; 3He/4He ratio (R) in relation to the atmospheric 3He/4He ratio (RA)]
Data Processing
The parameters described in table 1 require assessment in terms of quality, uncertainties owing to data collection procedures and preprocessing methods, and uncertainties in relation to long-term and large-scale geodynamic and magmatic processes. Based on these assessments, processing strategies were developed for individual parameters to combine them into a semi-quantitative index value of the relative potential of future igneous activity in Germany, without being able to determine absolute numbers for the eruption probability for a certain location.
Data Uncertainty
Apart from natural heterogeneities and variations, all parameters have uncertainty owing to data collection procedures, interpretation, and preprocessing strategies. Uncertainties exist for both the spatial distribution of data points and their underlying properties. Different kinds of uncertainties are identified, caused by (1) interpolation of properties between adjacent data points, (2) preparation and evaluation of data (for example, treatment of outliers or filtering and correction), (3) defined constraints (for example, for numerical simulations or other calculations), (4) attributed coordinates, (5) measurement errors, (6) data quality, and (7) generalizations and interpretations.
Parameters determined by geophysical methods are strongly dependent on the available monitoring network (especially the density of observation points) and the applied methods for data acquisition and processing, both of which might influence the resolution of the parameter results. For non-interpolated data, uncertainties regarding data collection, position coordinates, measurement errors (for instance, for hypocenters of earthquakes or for the assigned position coordinates of geochronological data of volcanic rocks), or generalizations of parameters and their interpretations (for example, for faults and sutures [former plate or terrane boundaries]) are taken into account by assigning uncertainty zones of different shapes adequate to the specific parameter (see “Processing Strategies” section). Underlying large-scale geodynamic and magmatic processes, which might affect a much larger area than the available dataset represents, are accounted for by additional buffer zones around the lateral extension of different parameters and their possible uncertainty zones. Within these buffer zones, the values of relevance for a specific parameter linearly decrease with increasing distance from the initial lateral shape or uncertainty zone of a parameter (see “Processing Strategies” section for more details). For example, the occurrence of igneous rocks at Earth’s surface can be assumed to only represent a small amount of the total melt ascending from Earth’s mantle, as most of the melt stalls during its ascent through the lithosphere (Sparks and others, 2019). Similarly, geodynamic processes associated with the formation of the European Cenozoic Rift System or suture zones must be much wider in subsurface regions than expected from observed near-surface structures. Although we mostly rely on surface observations in quantifying the spatial extent of a parameter, we assume that most of the deeper processes (such as dike or crack propagation) affecting the depth level of a repository mine for HLW (for example, between 300 m and 1,500 m below the surface) are covered by the applied buffer zones.
The described general application of uncertainty and buffer zones (see “Processing Strategies” section) for a specific parameter is only a first approximation for the region most likely affected by a parameter, given the possible underlying large-scale processes and uncertainties in a country-wide application of the multi-criteria approach. Accordingly, the uncertainty and buffer zones could be adjusted in the future in more regional applications depending on the local geological conditions, especially if more precise data or additional information are available for certain parameters, or if data densities facilitate the application of geostatistical methods or machine learning.
Processing Strategies
The parameters and their data are heterogeneous with respect to their quality and spatial coverage. Data collected with geophysical or geodetic methods (for instance, seismic anomalies in Earth’s mantle, depth of the Mohorovičić discontinuity [Moho] and the lithosphere-asthenosphere boundary [LAB], gravity anomalies, ground motion) as well as results from numerical simulations (for example, of the stress field) are mostly available for the whole of Germany (appendix 2). However, other datasets are limited to the surface expression of igneous rocks (for instance, geochronological data or distribution of igneous rocks) or form selective clusters or point data (for example, degassing centers and earthquakes). Evaluation of parameters is limited by the availability of data and information from different institutions and research groups. For areas in which no data are available for a certain parameter, a value of 0 is assumed with reference to the current data availability and knowledge base for the parameter. For some clustered information, like the occurrence of bicarbonate springs that have been used since at least ancient Roman times, the data can be assumed to be close to complete, and the lack of data reflects the absence of occurrences.
Depending on the parameter, threshold values are defined on the basis of (1) the statistical distribution of data within a reference region of different size (for example, for seismic anomalies, depth of Moho and LAB, gravity anomalies, stress field, ground motion, and seismic hazard areas), (2) specific levels of significance given in the literature (such as for helium isotopes), or (3) the sole existence of a parameter itself (for example, for the occurrence of igneous rocks, earthquakes, faults, and sutures). Depending on the parameter, the reference region in (1) is defined by (1a) an area in northern Germany unaffected by Cenozoic volcanism or the thickening of the lithosphere as a result of deformation related to the Alpine orogeny (for example, for depth of Moho and LAB), (1b) Germany as a whole (for instance, for seismic hazard), or (1c) Germany and adjacent areas (for example, for seismic anomalies, gravity anomalies, and stress fields). A detailed description of the threshold and the demarcation criteria for each parameter is given in appendix 1, table 1.1.
To compare and combine different parameters into hazard potential maps, their relevant values (delimited by the threshold value) are normalized to a uniform standard scale with values between 0 and 10, where 0 represents the lowest potential hazard and 10 the highest potential hazard of a certain parameter. However, the occurrence of a single parameter does not constitute an overall hazard for volcanism, as only elevated values of the index calculated from the combination of all parameters indicate a higher relative potential for future igneous activity. When values outside Germany are considered in the normalization procedure of specific parameters, the maximum value of this uniform standard scale of relevance may not be located inside Germany. Where interpolated data are available, the values are directly converted to the uniform standard scale of relevance (see strategy 1). Parameters for which only a spatially limited interpolation is available within individual clusters of point data (for example, for helium isotope data; see strategy 2) are also directly converted to the uniform standard scale of relevance. For parameters whose existence itself acts as quantifiable property, the highest relevance is allocated to the initial lateral shape or uncertainty zone of the parameter (with surrounding buffer zones of decreasing values; refer to strategy 3).
References for the data used are given in the supplementary material (appendix 2). A detailed description of the datasets and the processing for each parameter is provided in the technical reports of Bartels and others (2022) and Rummel and others (2023). Data processing for individual parameters can be grouped into three strategies, which are briefly described here with examples illustrated in figures 2–4.
Strategy 1 is used for continuous parameters for which interpolated, country-wide data records are available (∆Vs and ∆Vp [seismic velocities of secondary and primary waves relative to horizontal mean], depth of LAB and Moho, magnitude of σ3 [minimum principal stress], critical fluid pressure for fracturing, seismic hazard areas, uplift, second invariant of strain rate, dilatation, and gravity anomalies); an example showing seismic velocities of secondary waves is given in figure 2. To begin, the datasets (fig. 2A) are further interpolated to a 1 km by 1 km spatial grid (applied for all indicators) using a cubic or nearest neighbor interpolation method depending on the parameter (fig. 2B). Thresholds are defined (appendix 1, table 1.1) on the basis of the frequency distribution of all (or only positive or negative) values depending on the parameter using the average or the standard deviation of the respective data to determine critical values to be considered in hazard assessment (fig. 2C). Finally, the data between the proposed threshold value and the minimum or maximum value (in the example of seismic velocity for secondary waves, this minimum or maximum value is the most negative value of the anomaly; fig. 2C) are normalized to the chosen uniform standard scale of relevance with values between 0 and 10 (fig. 2D). If different datasets are available for a certain parameter, an average is computed before the normalization procedure (for example, for Moho and LAB depth). Other datasets were combined after normalization (for instance, three depth layers of the stress field, two sets of ∆Vs) as only their normalized value distribution could be compared owing to different parameter scales. For example, stress generally increases with increasing depth. To consider only the lateral variation of the least compressive stress (σ3) in each depth level and not the total amount of stress, the data of the individual depth levels were processed separately and normalized to the uniform standard scale of relevance. The resulting normalized values were combined into a single layer for σ3.
Strategy 2 is applied for point datasets, which are further processed by either calculating a spatially limited interpolation (for example, for helium isotopes) or determining the spatial density of point data. An example of the latter is shown in figure 3 for the occurrence of mofettes and bicarbonate water using a planar kernel density method with an automatically determined bandwidth, modeled after Silverman (1986). In both cases, the resulting values are converted directly into the uniform standard scale of relevance (fig. 3B).
Strategy 3 is used for point, line, and polygon datasets that can be related to underlying large-scale processes that might affect a much larger area than the available datasets represent. For point or line data (for example, earthquakes, faults, and sutures), a surrounding area (for instance, a circular area for points and a belt for lines) with a specific spatial range is assigned to consider the uncertainties associated with the measurement, collection, and interpretation of data (for example, fig. 4B; see also “Data Uncertainty” section). The spatial range of these areas varies depending on the assumed uncertainty (for instance, 1 km radius around epicenters of DLF [deep low frequency] earthquakes, 10 km width for suture zones, 5 km width for generalized fault zones). For these uncertainty zones, a value of 10 (the highest value of the uniform standard scale), equivalent to the highest relevance of a parameter, is used. For parameters with polygon datasets (for example, structures of the European Cenozoic Rift System or distribution of igneous rocks), the area with highest relevance is already defined by the polygons. Uncertainties regarding the underlying large-scale processes are considered for all datasets by assigning additional buffer zones that surround the defined area with the highest relevance. Depending on the parameter, the spatial range of the buffer zone varies (for instance, 1 km for fault zones and 10 km for occurrences of igneous rocks). Within these buffer zones, the values of relevance linearly decrease with increasing distance to the center, from 10 (high relevance) to 0 (no relevance).
Besides these general applications of the third strategy, the parameter “geochronological data of volcanic rocks” is processed differently. For example, the available geochronological data are grouped into different age categories. The first category comprises the period of the Quaternary between 2.6 Ma and today, in accordance with the exclusion criterion “volcanic activity” stated in the StandAG. The second category is based on the specifications of the International Atomic Energy Agency (IAEA) for the safety of nuclear installations (IAEA, 2016) and covers the age range between 2.6 and 10.0 Ma. The other categories are divided into steps of 10 Ma up to an age of 60 Ma. To account for earlier volcanism possibly related to the European Cenozoic Volcanic Province, the last category includes all ages greater than 60 Ma up to 145 Ma. Because of the importance of young volcanism for the hazard assessment of future volcanic eruptions, values of relevance are assigned to the selected categories following an exponential function. A country-wide assignment of values determined in this way to igneous units rather than to individual rocks cannot be made because of heterogeneous datasets related to different regional stratigraphic scales and definitions used by various authors. Alternatively, the values are applied to allocated circular areas with a uniform radius of 2.5 km around the position coordinate of the analyzed rock sample (assigned to a specific age datum). The size of the circle is defined by an assumed average size of volcanic structures (vents, craters, lava flows, and so on) in the volcanic fields of Germany. The chosen radius also covers most of the sizes of possible subvolcanic dikes, which might affect an underground repository. Uncertainties regarding the lateral distribution of the volcanic structures and magma conduits from lithospheric or asthenospheric magma reservoirs, which in some cases are larger than the assigned circular area with a 2.5 km radius, are taken into account by assigning 10 km wide buffer zones, with a gradual decrease of values from the respective prescribed value of relevance (fig. 4B). For the combined consideration of all age data, the individual age categories, together with their respective buffer zones (fig. 4C), are added and scaled between 0 and 10 (fig. 4D). The advantage of this approach is the general consideration of recurring volcanic activity within different periods of time without having to distinguish between episodic volcanism or long-lasting and persistent activity.
Maps and a frequency distribution of data processing strategy 1 showing seismic velocities of secondary waves (Vs). Strategy 1 is generally used for interpolated, country-wide data records, whose value range can be directly converted to the uniform standard scale of relevance. A, Map of initial interpolated, country-wide data and their resolution (from Collaborative Seismic Earth Model described in Fichtner and others, 2018) at 75 kilometers (km) depth after determining the deviation of absolute isotropic velocities from horizontal mean (Vs to ∆Vs), or isotropic anomaly. B, Map of the determined minimum values of ∆Vs [min ∆Vs] within 60–90 km depth (assumed here as the melting depth for each location), and interpolation of “min ∆Vs” to a 1 km by 1 km spatial grid using a cubic interpolation method. C, Graph of threshold values from the negative “min ∆Vs” distribution. D, Map that shows the scaling of “min ∆Vs” between the proposed relevant threshold value and the most negative value of the anomaly to values between 0 and 10. %, percent.
Maps showing an example of data processing strategy 2. Strategy 2 is generally used for point datasets with limited spatial interpolation. The resulting values can be converted directly into the uniform standard scale of relevance. A, Map of occurrences of mofettes and bicarbonate water in Germany and adjacent areas after Bartels and others (2022). References for the data are given in the supplementary material (appendix 2). B, Map showing normalized spatial density of the point data given in A.
Maps of the results from extended data processing strategy 3 showing geochronological data of volcanic rocks. Strategy 3 is generally used for point, line, and polygon datasets that can be related to underlying large-scale processes that might affect a much larger area than the available datasets represent. All maps represent the same area shown on inset regional map. A, Map of available geochronological data of volcanic rocks in the Eifel volcanic fields and adjacent areas for a defined age category (2.6–0 million years ago). References for the data are given in the supplementary material (appendix 2). B, Map of assigned circular areas (radius of 2.5 kilometers [km]) and additional buffer zones of 10 km width around a sample position coordinate with normalized values of defined relevance. C, Map showing the superposition of all age categories investigated (visualized with 30 percent transparency). D, Map showing the result for the parameter “geochronological data of volcanic rocks” after adding the calculated values of given age categories from C and normalization to the uniform standard scale of relevance between 0 and 10. r, radius; s, width of buffer zone.
Combination of Parameters to a Single Index Value
The aim of the combined consideration of all 20 parameters is to develop a semi-quantitative index value for potential future igneous activity in Germany during the next 1 m.y. To compare different parameters (refer to the “Processing Strategies” section), their relevant values are normalized to a uniform standard scale. These normalized parameters are used to develop an index value for each geographical location of the 1 km by 1 km grid by multiplying the parameter values with defined weighting factors and adding them together. The higher the index value, the higher the assumed potential for future igneous activity in the respective region. Four different approaches are computed to account for different relevance of indicators and assigned parameters by using different individual weighting factors.
The expert surveys regarding forecasting volcanism in Germany (Bartels and others, 2020; Rummel and others, 2021a) conducted according to the Delphi method (Häder, 2009) yielded differences in expected relevance for individual indicators. In these surveys, indicators were ranked according to five possible categories. Assigned values varied between one (very low relevance) and five (very high relevance; Bartels and others, 2020; Rummel and others, 2021a). However, since the average ranking from all experts is used for each indicator, the resulting weighting factors after normalization are similar (table 1.2, approach 1). In approach 1, the respective parameters are weighted using the relevance for the indicators obtained from the expert surveys.
For approach 2, the parameters are assigned to different categories of processes that lead to a volcanic eruption. Parameters that provide information on possible melt formation in Earth’s mantle are separated into one process category, separate from processes that provide information on possible pathways for melts within the lithosphere. A third process category comprises volcanic surface features (indicative of a past eruption), including the distribution of igneous rocks based on geological maps and their ages (table 1.2). To equally account for all three process categories, the sum of the weighting factors within each category must be equal to one third (table 1.2, approach 2). This procedure guarantees that processes for which many quantifiable parameters are available do not become disproportionately high in relevance when all parameters are summed.
Approach 3 is a combination of approach 1 and approach 2 and includes both the results of the expert surveys as well as the different process categories.
To test for the sensitivity of the multi-criteria approach, a statistical approach 4 is used, where the weighting factors within the process categories of approach 2 were computed using a random number generator with a uniform distribution. Weighting factors between 0 and 1 with a resolution of 0.01 were calculated and normalized to one third within each process category. Based on the resulting weighting factors, 1,000 possible realizations for the index were calculated and are used to determine the mean index value for each geographical location.
The results of the different approaches are described in the “Results” section and are illustrated in respective index maps (fig. 5).The approach 3, which considers both the results of the expert surveys as well as different process categories, is further used to calculate hazard index maps to determine the relative potential of future igneous activity in Germany for the next 1 m.y. (see “Index Maps of Relative Hazard Potential” section).
Results
For approach 1, high index values are observed for the Eifel region, with maximum values in the East Eifel volcanic field. Additionally, north of the Eifel volcanic fields around the Siebengebirge and southeast of the Eifel volcanic fields in the Hunsrück and Rhine-Main lowlands, higher values of the calculated index are present compared to the surrounding areas. Other regions that show an elevated potential for future igneous activity during the next 1 m.y., based on the results of approach 1, are the Hessian Depression, Upper Palatinate and the southern Vogtland, as well as parts of the southern Upper Rhine Graben. Slightly lower, but still elevated, index values are present in southern Germany around Bad Urach and the Hegau volcanic field. Lineaments of faults and sutures are observed within the resulting index maps throughout Germany, with slightly elevated values compared to the surrounding areas (fig. 5A).
The results of calculated index values using approach 2 show clear differences to approach 1 (fig. 5A, fig. 5B). By considering process categories (as done in approach 2), the regions with substantially increased index values can be correlated with surface expressions of Cenozoic igneous rocks. Similar to approach 1, the maximum values appear in the area of the Eifel volcanic fields, but the lateral extensions of the maximum values for approach 2 are more pronounced (fig. 5B). In the areas of northeastern Hunsrück, Taunus, Rhine-Main lowlands, Hessian Depression, Upper Palatinate, southern Vogtland, and southern Upper Rhine Graben, values of the calculated index are slightly higher relative to the results of approach 1. Other regions that show an elevated potential for future igneous activity are around Vogelsberg, Rhön, Heldburger Gangschar, and the southern volcanic fields around Bad Urach and in the Hegau.
The results of the combined approach 3 (fig. 5C) are almost identical to those of approach 2 (fig. 5B), with the highest index values in regions where volcanism has occurred in the Cenozoic. The same can be observed for the statistical approach 4, with the difference being that the maximum values of the calculated averaged index are generally more pronounced when compared to approach 2 and approach 3 (fig. 5B, C, D).

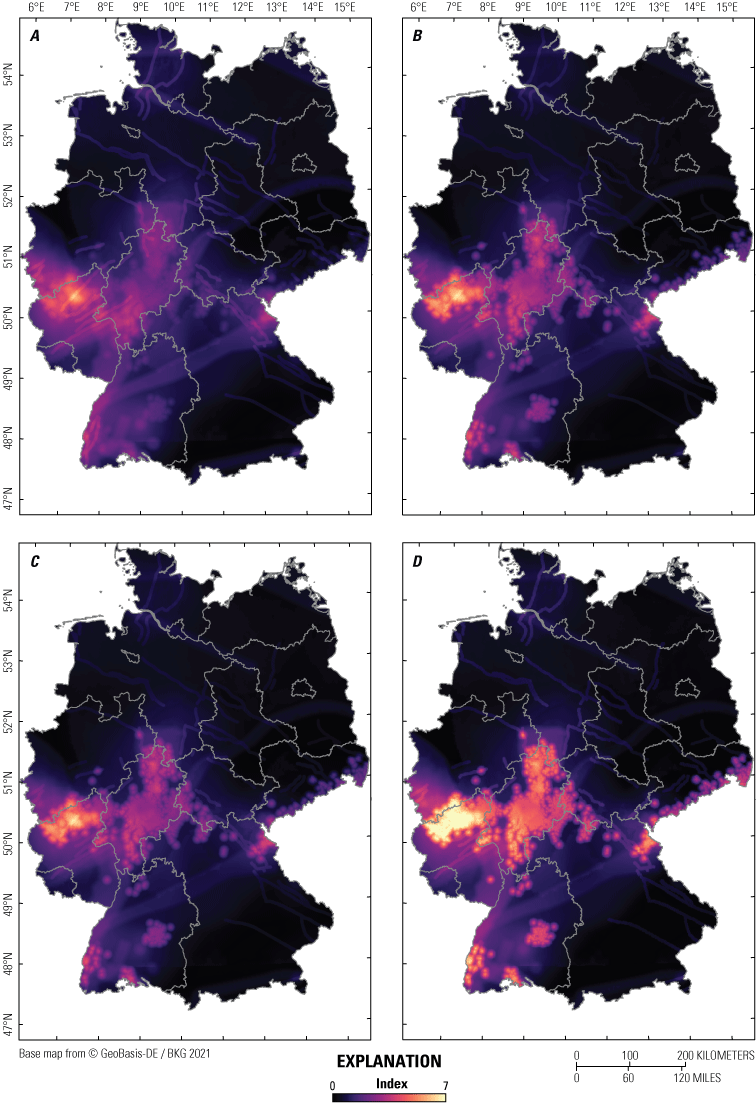

Maps of the spatial distribution of computed index values for four different approaches. A, Approach 1: considering results from expert surveys in the weighting factors. B, Approach 2: considering process categories for the weighting factors. C, Approach 3: a combination of approach 1 and approach 2. D, Approach 4: statistically determined weighting factors. An index value of 7 corresponds to the highest relative potential for the occurrence of future igneous activity in Germany.
To quantify differences between approaches and evaluate the multi-criteria approach’s sensitivity in terms of different weighting factors, the absolute differences of index values between two different approaches were computed (fig. 6). The results show distinct differences between approach 1 and approach 2, with an average difference between index values of 0.16 and a maximum difference of 1.75. This difference illustrates the substantial effect of normalizing weighting factors within respective process categories instead of considering all parameters after sole expert valuation in the computed index values. When random weighting factors are used (approach 4) instead of factors obtained from expert surveys (approach 3) in the process categories, the average difference is smaller (0.08) but still clearly visible in the comparison map (fig. 6B). Nevertheless, the resulting images of the spatial distribution of index values are still similar (fig. 5), although the magnitude of the index regarding the potential of future igneous activity may vary regionally depending on approach. Accordingly, the proposed multi-criteria approach appears mostly insensitive to the effects of different weighting schemes because of the large number of parameters considered in determining areas that have a relatively higher potential for future igneous activity in the next 1 m.y.

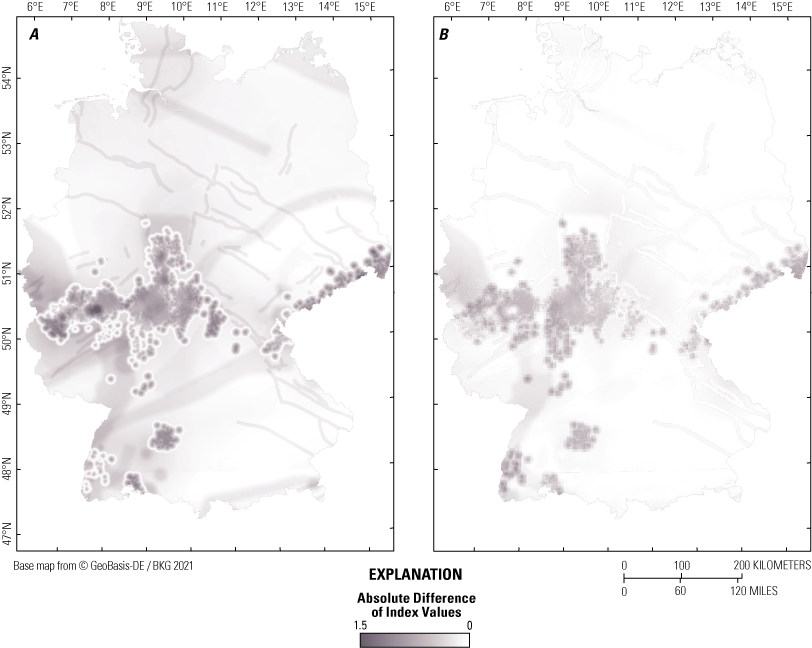

Maps showing the quantitative comparison of the different approaches shown by the absolute differences of their index values. A, Map that shows the comparison between approach 1 (considering results from expert surveys in the weighting factors) and approach 2 (considering process categories for the weighting factors). B, Map that shows the comparison between approach 3 (as combination of approach 1 and approach 2) and approach 4 (statistically determined weighting factors).
Discussion
In the following sections, the effects of individual parameters on the resulting index are shown, and it is discussed how the distribution of index values can contribute to a hazard assessment of future igneous activity. Furthermore, limitations of the multi-criteria approach are identified, and the possible transferability of the multi-criteria approach to other intra-plate settings related to volcanism is presented.
Parameter Components of the Index Values
To quantitatively evaluate and visualize the results, the index values of the combined approach 3 are presented along defined profiles (fig. 7). The north-south oriented profile, profile A–A′ (fig. 7A), shows a minor relative potential for future igneous activity in northern Germany and an increased potential in central and southern Germany (for instance, around the Tertiary volcanic field around Bad Urach). The west-east oriented profile, profile B–B′ (fig.7B), passes through the Quaternary East and West Eifel volcanic fields. The index values are generally higher than along the north-south profile and form a plateau in the west, with values between 5 and 6 (with a maximum value of 6.1 in the East Eifel volcanic field). These values decrease eastward, where another plateau with index values of about 3 occurs in the areas of Vogelsberg and Rhön volcanic field.
An indirect indication of the factors that cause an increase or decrease of the index values is provided by the value distributions of individual parameters that in sum represent the index values. The relative distribution of index values along the profiles is controlled by the characteristics of all parameters and their respective weighting factors. Parameters with normalized values larger than the calculated index led to a general increase of the absolute index values, whereas normalized values smaller than the calculated index led to a decrease of the absolute index values. Figure 7C shows the relative fractions of normalized and weighted parameters of the index for profile B–B′. In areas where multiple parameters are present, the index values are generally elevated. Highly elevated index values around the Eifel region are due to the relative fractions of the following parameters: occurrence of igneous rocks, uplift, critical fluid pressure for fracturing, ∆Vs, ∆Vp, gravity anomalies in Earth’s mantle, occurrence of mofettes and bicarbonate water, and helium isotopes—expected characteristics of a volcanic field that was most recently active about 11 ka (West Eifel volcanic field) and that would likely have a higher potential for eruptions in the next 1 m.y. Small variations along profile B–B′ are further induced by DLF and swarm earthquakes, geochronological data of volcanic rocks, structures of the European Cenozoic Rift System, and the distribution of faults, sutures, and terrane boundaries (fig. 7). However, the large number of considered parameters and their superposition make it difficult to link local variations of index values to the effect of specific parameters.

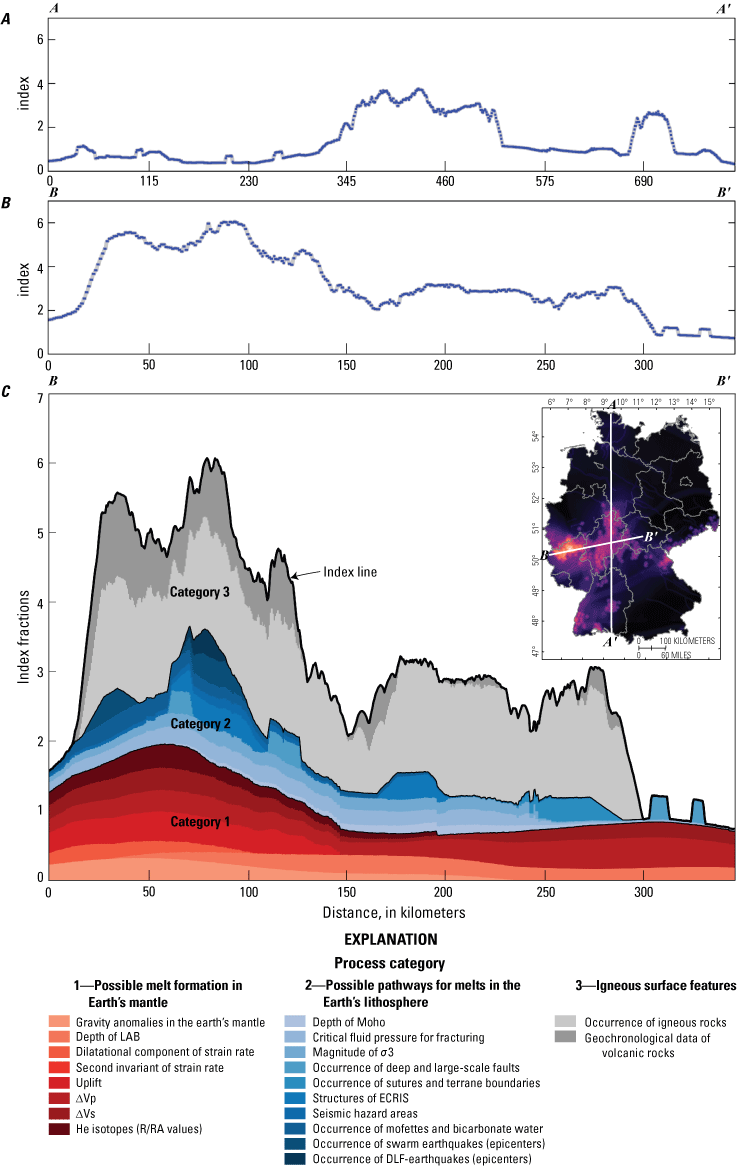

Graphs of index value distribution and its underlying index fractions from parameters of the combined approach 3 (considering results from expert surveys and process categories for the weighting factors). A, Index value distribution along north-south profile A–A′. B, Index value distribution along west-east profile B–B′. Note the x-axis scales on the profiles in A and B are different. C, Index fractions of individual parameters for profile B–B′ divided into the three process categories: possible melt formation in Earth's mantle, possible pathways for melts within the lithosphere, and igneous surface features. The index fractions represent normalized parameter values multiplied by respective weighting factors (approach 3, table 1.2), summed up to form an index. LAB, lithosphere-asthenosphere boundary; ∆Vp and ∆Vs, seismic velocities of primary and secondary waves relative to horizontal mean; He, helium; 3He/4He ratio (R) in relation to the atmospheric 3He/4He ratio (RA); Moho, Mohorovičić discontinuity; σ3, minimum principal stress; ECRIS, European Cenozoic Rift System; DLF, deep low frequency.
Index Maps of Relative Hazard Potential
Based on the spatial distribution of the index values, a country-wide hazard index map with continuous trends of the relative potential for future igneous activity is proposed, as illustrated in the map section shown in figure 8.

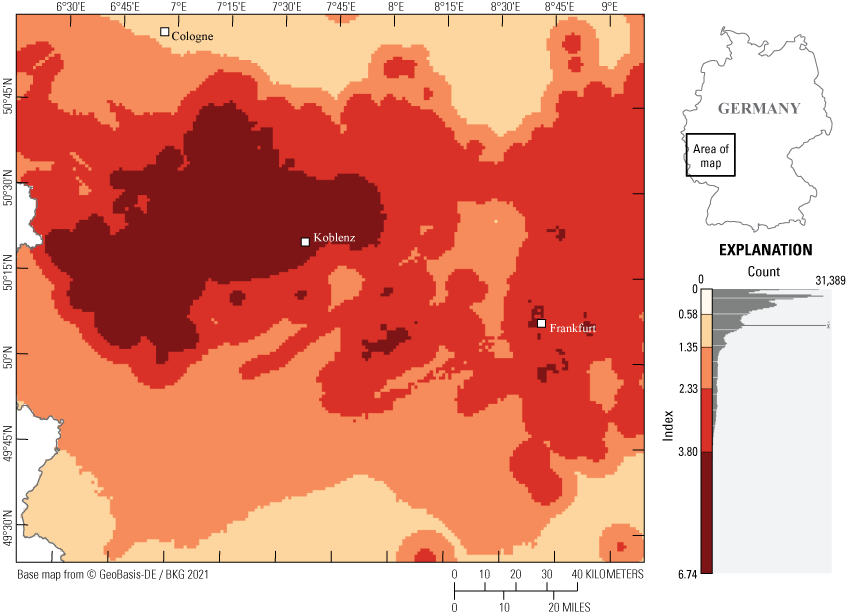

Map of area in western Germany showing relative potential for future igneous activity using continuously changing index values calculated using approach 3 (considering results from expert surveys and process categories for the weighting factors). Contour lines are shown at index intervals of 0.5. An index value of 7 corresponds to the highest potential for the occurrence of future igneous activity relative to other areas in Germany.
The continuous distribution of index values results in a more differentiated image of the relative hazard potential compared to the results of Schreiber and Jentzsch (2021), who outlined areas in Germany with or without “expected” future volcanic activity based on the occurrence of individual parameters. Furthermore, with the procedure recommended here, possible threshold values, which can be used for the assessment of the hazards from potential future igneous activity, can be displayed within the map using contour lines (isolines of the calculated index). Whether an area falls into a certain hazard class of potential future igneous activity depends on the individual assessment of the calculated index of the chosen approach (approach 1–approach 4) and the defining class boundaries for different hazard potentials. Figure 8 illustrates the calculated index values and their isolines for the combined approach 3 from the Eifel region to the Rhine-Main lowlands. The area west of Koblenz, called East Eifel, is characterized by the highest values of the hazard index, with values > 6.5.
An alternative approach to create hazard maps is to define hazard classes based on the frequency distribution of index values using different data classification methods—for example, by using quantiles, equal-sized subranges, or natural breaks. Depending on the classification method used, the limits of individual classes vary considerably. The assignment of local index values to a specific hazard class of potential future igneous activity is therefore strongly dependent on the classification method and the definition of critical thresholds. Furthermore, areas could be differentiated according to the number of existing parameters. The local value of an existing parameter (if greater than 0) can be ignored or incorporated by multiplying those numbers by defined factors representing the value distribution or the potential relevance of a parameter for the hazard assessment. Using a specific number of existing parameters as a required condition may better highlight the most likely regions of future volcanism by decreasing the values of relevance in areas that are not supported by enough parameters. Index maps with a different number of underlying parameters can be added to a more amplified hazard map. In figure 9, the results of classifying the index values using natural breaks (Jenks and Caspall, 1971; De Smith and others, 2007) with five possible classes are shown. In this classification method, similar values are grouped together, and the limits of classes are defined where large changes of data values occur.
Map of area in western Germany showing defined possible hazard classes of the relative potential for future igneous activity for approach 3 (considering both the results from expert surveys and process categories for the definition of weighting factors) using the classification method of natural breaks modeled after Jenks and Caspall (1971) and De Smith and others (2007). The histogram of index values shows the respective classes which are transferred to the map.
However, the use of generalized classes with assigned potential future activity values (fig. 9) should be avoided when spatially differentiating the relative potential for future igneous activity, and only be used for simplicity. Classes defined in this way and the values standardized therein reduce the information content and the possibilities for differentiation within a class and maximize the apparent difference between the classes, potentially leading to misinterpretations. Furthermore, fixed hazard classes do not reflect the current state of scientific knowledge about processes subject to volcanism nor the uncertainties in the underlying data when used for forecasting the potential of igneous activity in Germany.
Defining areas to be excluded for an underground repository for HLW because of potential future igneous activity should be linked to some threshold based on the calculated index. Volcanic hazards and related near-surface igneous processes are, however, only one among many criteria used in the site selection process for underground HLW repositories. In particular, the proposed 1 m.y. performance period for a repository significantly exceeds the timeframe typically considered in traditional societal risk decisions (usually less than 100 years). In the end, pros and cons of candidate repository sites for HLW must be balanced—a process that can consider the local differences in the hazard index. As areas in Germany with index values of 0 are few, not discarding the information of index values below arbitrary thresholds is important, as those data could be used to compare different candidate sites during the final rounds of the selection process.
In addition to the geoscientific indicators considered in the multi-criteria approach presented here, other indicators exist that do not provide information about the potential of future igneous activity. Rather, these indicators provide information regarding the type of volcanic eruption that may occur in the future and its effects on repository performance, as well as near-surface environment and infrastructure (Jentzsch, 2001; Lorenz, 2007; IAEA, 2012, 2016; Jentzsch, 2013; Bartels and others, 2022). The influence of volatiles, fragmentation of magma, and distribution of volcanic products, as well as regional hydrogeological conditions and local topography might be of importance for understanding the consequences of any future eruptions. For example, Schmincke (2014) has shown that the distribution of the Laacher See tephra (deposited by the youngest volcanic event in the East Eifel volcanic field, just under 13 ka) is widespread in Central Europe. Additional calculations from Leder and others (2017) indicate that the effects of another eruption similar to that of Laacher See would not only affect nearby cities such as Koblenz, but also more distant cities like Frankfurt, owing to the prevailing westerly winds. Large deposits of tephra could therefore lead to significant damage. Additional volcanic processes, such as the formation of lahars or the damming of rivers like the Rhine because of lava flows and tephra deposits and possible subsequent dam failures, could occur in the future—events that could lead to considerable damage in the surrounding regions (Park and Schmincke, 1997; Jentzsch, 2001; Schreiber and Jentzsch, 2021). Other processes and phenomena that can have a direct result on the safety of nuclear installations, and therefore also on the safety of repositories for HLW during the operational and possible recovery phases (about 500 years; StandAG, 2017), are described in reports of the IAEA (IAEA, 2012, 2016).
These site-specific parameters could be considered separately after a country-wide or regional application of the proposed multi-criteria approach and may be important for the assessment of safety zones for critical infrastructure, such as for HLW repositories.
Limitations of the Multi-Criteria Approach
In addition to uncertainties associated with individual parameters and those produced by data processing, described in the “Data Uncertainty” section and in more detail by Bartels and others (2022), further uncertainties in the assessment of potential future igneous activity result from the combination of parameters to form an index value. Depending on the approach used, the spatial dependencies of the calculated index values and the derived distribution of the hazard index in Germany are different. Accordingly, the choice of a specific approach is critical for the evaluation of the results in regard to the relative potential for igneous activity in the next 1 m.y., and the definition of hazard classes. The comparison of the various approaches (see “Results” section), however, also shows that the derived hazard maps are similar despite their differences in the absolute index values. The insensitivity of the proposed multi-criteria approach to the effects of different weighting schemes is further supported by the results of approach 4, which considers a statistical variation of weighting factors for individual parameters inside each process category. The importance of considering process categories, included in approaches 2–4, is apparent as all available quantifiable parameters that can provide information about the relative potential of future igneous activity are considered in the multi-criteria approach. Accordingly, a different number of parameters is used to describe a specific phenomenon that can be related to magmatic processes. To prevent processes with many available indicators and assigned parameters from being given disproportionally high weighting in a multi-criteria approach, the same sum of weighting factors is used for each of the defined process categories to which different numbers of parameters are assigned.
The results are affected by data availability, completeness, resolution, and parameter quality to provide information about potential future igneous activity. Depending on the applied methods for data collection and processing and methods constraints, the spatial characteristics of different parameters may vary (Bartels and others, 2022). The data were analyzed considering the current state of knowledge and existing supra-regional datasets. Areas in which no suitable data are currently available are described by a parameter value of 0. A 0 value may influence the value distribution of the index (as a sum of all normalized parameter values) but is necessary because of insufficient data records and missing process understanding for some parameters (for example, for helium isotopes). Using random parameter values, instead of a value of 0 as proposed, without reference to process understanding or existing measured or computed values should be avoided, because the results would not be based on reliable data and could suggest a higher volcanic hazard than is the actual case in certain regions. The results from the multi-criteria approach are thus a conservative estimation of hazard potential.
The multi-criteria approach allows the incorporation of new datasets into the hazard assessment, if such data should become available. Additional knowledge of individual parameters may be used to further refine the hazard index. During a progressively focused search for repository sites for HLW, datasets that are only locally available and therefore could not be used in the Germany-wide hazard assessments can now be used in a regional application of the multi-criteria approach to further improve the assessment results. Moreover, the use of regional scale geophysical datasets or geological maps with higher resolution and (or) a higher degree of precision is recommended when focusing the search for a repository site for HLW on smaller regions.
The indicators used and their assigned parameters can only provide information about areas with a higher relative potential for future extrusive or near-surface intrusive magmatic activity over the timescale of long-term geodynamic and magmatic processes in Earth’s mantle and crust (thousands to millions of years). The long-term processes include plate tectonic movements within Europe, which will lead to uplift, tectonic faults, crustal extension, subsidence, earthquakes, and magmatic activity. Similarly, mantle convection and smaller mantle upwellings (plumes, diapirs, and compensatory upwellings at plate boundaries) occur slowly compared to the million-year timeframe required for a safe repository for HLW. Decompression in Earth’s mantle has led, and will probably continue to lead, to the formation of partial melts, from which magmas can develop and rise to Earth’s surface. Examining the age data of the volcanic fields in Germany reveals that, during the Cenozoic era, volcanic activity was sometimes very long-lasting, but there was also renewed activity after periods of dormancy lasting several million years (Rummel and others, 2021b). Therefore, a resurgence of volcanism cannot be ruled out in the future. Thus, although the multi-criteria approach cannot be used to quantify the absolute probability or timing of a future volcanic eruption, the results can indicate the relative potential for future igneous activity over the long term.
Transferability of the Multi-Criteria Approach to Other Regions
The multi-criteria approach presented here is, in principle, applicable for the hazard assessment of long-term (over the next 1 m.y.) near-surface igneous activity related to distributed volcanic fields in general. A crucial requirement is the availability of data with high quality and resolution that describe individual parameters relevant to potential future magmatic activity. Depending on the available data, some parameters might be treated differently with respect to data processing in the assessments of other areas; for example, other indicators might be extended by additional parameters, or existing parameters could be quantified more precisely. Additionally, applying the multi-criteria approach to other regions requires enough parameters (meaning that the inclusion or omission of a single parameter should not have a significant effect on the results) to be considered in the index value determination and that each of the different process categories (table 1.2) is represented by multiple parameters. Although such an index approach can be adapted to other magmatic provinces, the underlying data will always be different. As index maps are produced for specific regions and normalized to a uniform standard scale, however, the results for the relative potential of future igneous activity can provide important insights into potential future volcanic hazards. Using the index approach presented here allows for the rough differentiation of regions in terms of their relative potential of future igneous activity, and easily adapted threshold values can be used for the spatial demarcation of hazard potential. However, the multi-criteria approach should primarily be regarded as a semi-quantitative opportunity to indicate a relative potential of possible future igneous activity on a long-term scale (for instance, over the next 1 m.y.). The multi-criteria approach is not a substitute for existing quantitative probability analyses of volcanic hazard in Quaternary volcanic fields (Weller and others, 2006; Connor and others, 2009; IAEA, 2016; Marrero and others, 2019; Ang and others, 2020), rather a supplementary means of extending such assessments or providing insights in the absence of such assessments.
Application of the multi-criteria approach in recently active intraplate volcanic settings could help constrain indicators and parameters that might be critical for forecasting volcanic or igneous activity, assuming equal threshold values and normalized scales for individual parameters. Comparisons of different fields might reveal indicators of particular importance for forecasts. This knowledge would facilitate decisions about the applicability and further development of the multi-criteria approach described here.
Summary and Conclusion
A semi-quantitative, multi-criteria approach is presented that can be used for a spatial differentiation of the relative potential for future igneous activity in Germany during the next 1 million years (m.y.). Various geoscientific indicators thought to provide information about recent or possible future processes connected to magmatic activity are evaluated using 20 quantifiable parameters. Different strategies to define values of relevance are described for the parameters applied. Thresholds are established for each parameter using statistical distribution of data, specific levels of significance given in the literature, or the sole existence of a parameter itself (appendix 1, table 1.1). Data collected with geophysical or geodetic methods, as well as results from numerical simulations, are mostly available for the whole of Germany and can therefore be converted directly into a uniform standard scale of relevance, but other datasets are more spatially limited, forming selective clusters or point data. For spatially limited datasets, underlying large-scale processes that might affect a much larger area than the available data and their assigned uncertainty zones represent, are considered by applying additional buffer zones around areas of different shapes, across which the values of relevance linearly decrease. The combination of all parameters results in a multi-criteria index that presents the relative potential for future igneous activity in Germany over the next 1 m.y.
Four different approaches are presented for evaluating all criteria, with the difference between approaches being due to the weighting factors for individual parameters. In approach 1, the respective parameters are weighted using the relevance for the indicators obtained from expert surveys. A disproportional weighting of specific processes for which many quantifiable parameters are available is avoided in approaches 2 and 3 by utilizing standardized weighting factors within process categories. The results of approach 3, used for the final hazard assessment, show that the highest relative potential for future igneous activity in Germany exists in the Eifel region, followed by the Siebengebirge, the area of the northeastern Hunsrück and western Taunus, the Rhine-Main lowlands, the Hessian Depression, the Vogelsberg, the Upper Palatinate, the southern Upper Rhine Graben, and the Hegau. Further areas with relatively lower index values are in the southern Vogtland, in the Rhön, in the region of the Heldburger Gangschar, and around Bad Urach. The results of this analysis can help to identify potential locations of a high-level radioactive waste (HLW) repository, as opposed to a more arbitrary assessment; for example, where only regions with Quaternary volcanism (like the Eifel region) are excluded. The results of all approaches indicate that igneous activity during the next 1 m.y. may have the potential to occur in regions that have not been locations of Cenozoic volcanism. Low index values, indicating a low but not zero chance of igneous activity in the next 1 m.y., are present throughout Germany, reflecting the uncertainties in understanding the magmatic and geodynamic processes leading to intraplate volcanism. Accordingly, an absolute exclusion of volcanic activity within the next 1 m.y. is probably not possible anywhere in Germany.
The sensitivity of the model results with regard to different weighting factors is tested using statistical approach 4 in which the individual parameter values are weighted randomly with 100 possible realizations within each process category when calculating the index. The tests reveal only minor differences in the resulting index distribution when compared to those of approach 2 and approach 3.
To estimate the relative hazard potential for future igneous activity, a spatial distribution of continuous index values is recommended (fig. 8). The results of the semi-quantitative, multi-criteria approach form an objective basis for a comprehensive (equal and transparent) assessment of areas with elevated potential for future igneous activity in Germany. This multi-criteria approach can thus be used in the geoscientific long-term evaluation of possible repository sites for HLW.
