Introduction

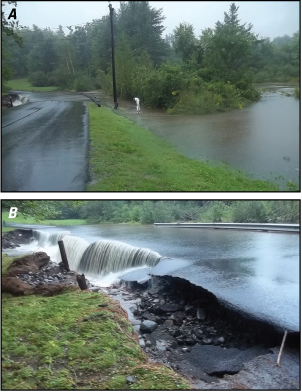

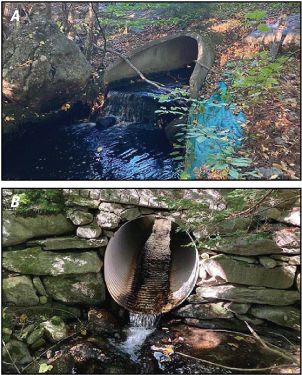

Currently (2026), many of the about 25,000 roadway crossing structures over rivers and streams in Massachusetts are undersized (Massachusetts Culverts and Small Bridges Working Group, 2020). Undersized culverts and bridges can be detrimental to fish and wildlife movement, habitat continuity, and the health of aquatic organisms (fig. 1). Undersized culverts also can lack the resiliency needed to withstand large floods, which could be worsened by potential increases in flood magnitude and frequency due to climate change (fig. 2). Improving culvert and bridge designs for stream crossing projects may improve aquatic organism passage, stream continuity, and resiliency during future floods by decreasing upstream overbank flooding, road flooding and erosion, and degradation of aquatic habitat.

The U.S. Geological Survey (USGS), Massachusetts Department of Environmental Protection (MassDEP), and University of Massachusetts Amherst (UMass Amherst) began a series of cooperative studies in July 2019 to develop an automated geographic information system (GIS) hydraulic modeling tool for preliminary culvert designs for stream crossings. The USGS plans to provide preliminary culvert designs in the web-based StreamStats application, which enables municipalities and engineers to view potential designs and related information for stream crossing replacement projects in Massachusetts. This application can (a) provide information on hydrology, hydraulics, and ecological conditions at stream crossing sites, (b) provide users with potential culvert designs to improve aquatic organism passage and flood resiliency, and (c) assist MassDEP in implementing the Massachusetts Wetlands Protection Act regulations for stream crossing projects (MassDEP, 2017).

Massachusetts Stream Crossing Standards

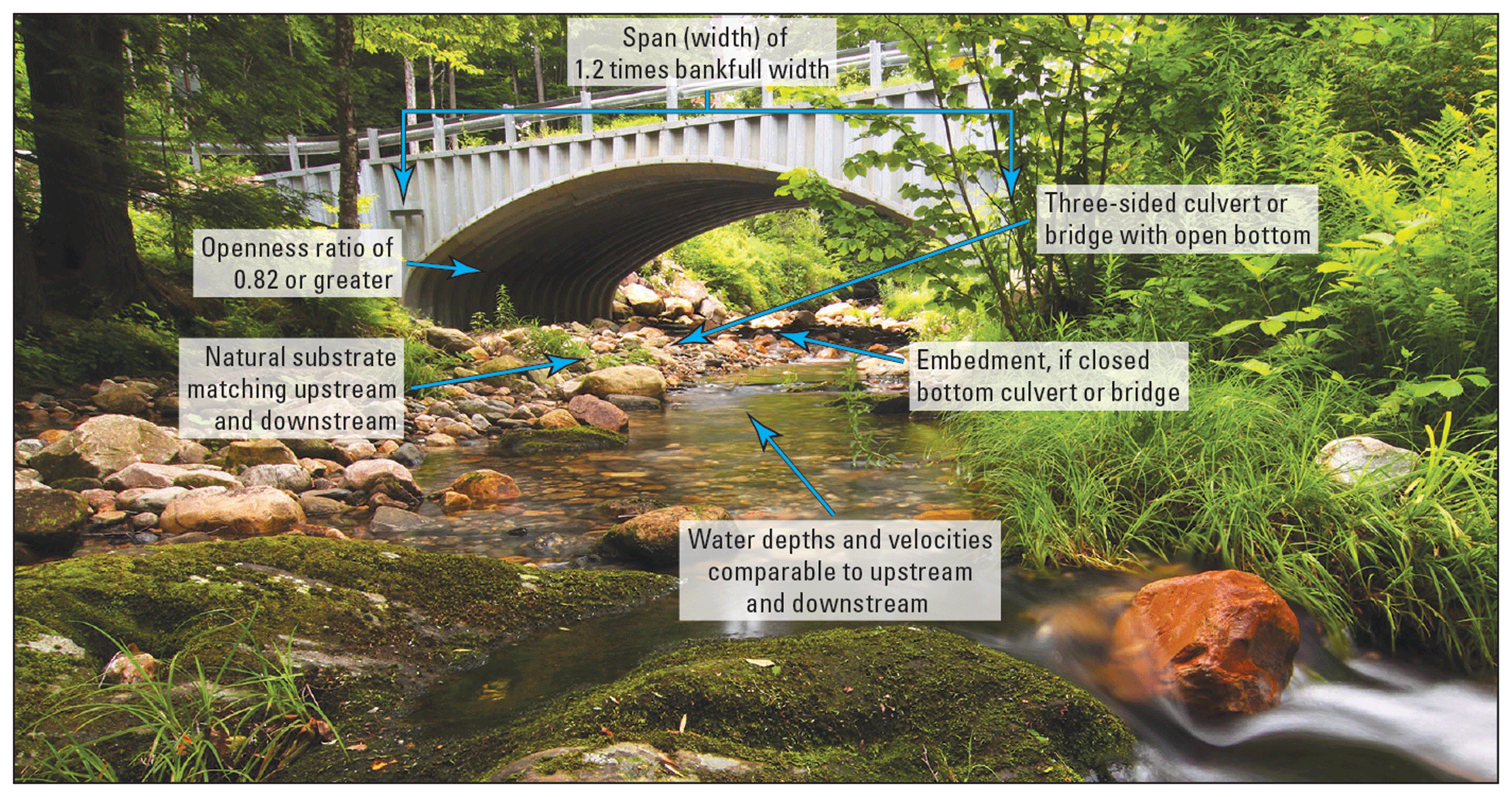

In 2000, UMass Amherst started evaluating stream crossings to promote aquatic organism passage in culvert designs. This stream continuity project (UMass Amherst, 2015) and related work led to a draft of the Massachusetts stream crossing standards in 2004 (previously referred to as the “Massachusetts river and stream crossing standards”; River and Stream Continuity Partnership, 2006). The draft stream crossing standards were incorporated into the U.S. Army Corps of Engineers' general permits for Massachusetts in 2005. In 2012, the Massachusetts Department of Fish and Game, Division of Ecological Restoration, published the Massachusetts Stream Crossing Handbook, which describes six stream crossing standards for a well-designed stream crossing (fig. 3; Massachusetts Division of Ecological Restoration, 2012):

In 2014, MassDEP incorporated the stream crossing standards into 310 CMR 10.00—the Wetlands Protection Act regulations (MassDEP, 2017)—which specifies that replacement stream crossings must be designed to meet the stream crossing standards to the maximum extent practicable (sections 310 CMR 10.24(10) and 10.53(8)). The regulations state that a proposed stream crossing shall demonstrate that negative effects of the crossing have been prevented or minimized and mitigated. The regulations also state that projects must evaluate the potential to comply with the standards to the maximum extent practicable by considering site constraints, undesirable effects or risk, and the environmental benefit compared with the cost.

In early 2010s, the USGS, in cooperation with MassDEP, completed a study that developed hydraulic models for seven stream crossings across Massachusetts (Zarriello and Barbaro, 2014). These hydraulic models were used to evaluate the existing culverts and to develop culvert replacement designs that meet the stream crossing standards and allow aquatic organism passage. The study indicated that the existing culverts did not meet the stream crossing standards and could not convey modeled flood flows, resulting in road deck overtopping and upstream backwater. Culvert replacement designs that met the stream crossing standards were mostly able to convey the modeled flood flows without causing upstream backwater.

In 2017, the Massachusetts Department of Fish and Game, Division of Ecological Restoration, started a Culvert Replacement Municipal Assistance Grant Program for communities in the State wishing to replace aging culverts. The grant program provides funding for culvert designs that improve structural and environmental designs, improve flood resiliency, and meet the stream crossing standards (Massachusetts Division of Ecological Restoration, 2022). Preliminary culvert designs produced by the USGS StreamStats automated GIS-based hydraulic modeling tool are designed to align with the grant program’s goals.

The North Atlantic Aquatic Connectivity Collaborative (NAACC; UMass Amherst, 2022) has continued stream crossing assessments for aquatic organism passage across Massachusetts that were started by UMass Amherst in 2000. These stream crossing assessments for many culverts and small bridges in Massachusetts and other northeastern States are available at https://naacc.org/naacc_search_crossing.cfm. Stream crossing codes for the NAACC stream crossing assessments are provided in USGS StreamStats so the user can search the NAACC for the assessment data of existing stream crossings.

An Automated GIS-Based Hydraulic Modeling Tool

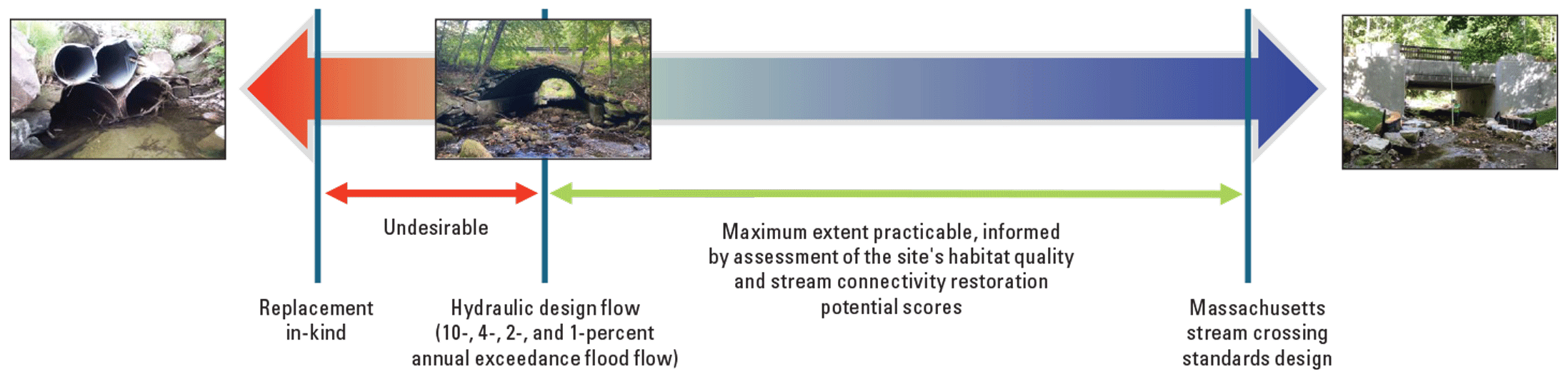

The USGS has developed an automated GIS-based hydraulic modeling tool using ArcGIS software, the Python programming language, and the U.S. Army Corps of Engineers Hydrologic Engineering Center’s River Analysis System (HEC–RAS; U.S. Army Corps of Engineers, 2021). The tool is used to develop preliminary designs for box, arch, and pipe culverts to convey the 10-, 4-, 2-, and 1-percent annual exceedance probability (AEP) flood flows (equivalent to the 10-, 25-, 50-, and 100-year recurrence interval flood flows) and to meet the Massachusetts stream crossing standards. The flood flows used in the tool are adopted from hydraulic design flows associated with the roadway functional classification used by the Massachusetts Department of Transportation (MassDOT, 2025a, b) for culverts and bridges. The goals of these preliminary designs are to ensure that undersized stream crossing replacements are not in-kind (the same design as the original) and that the designs provide some flood resilience and aquatic organism passage. The range of preliminary designs provides possible options based on the habitat quality and stream connectivity restoration potential at the stream crossing while also meeting the stream crossing standards to the maximum extent practicable (fig. 4).

The automated tool derives hydrologic and hydraulic data needed for HEC–RAS models. The hydrology for the 10-, 4-, 2-, and 1-percent AEP flood flows needed for the models is estimated by using the Massachusetts flood flow equations by Zarriello (2017). The hydraulic data needed for input to HEC–RAS include the approach, upstream and downstream face (inlet and outlet) of the culvert, and exit cross sections. The tool creates these cross sections using high-resolution elevation data from the lidar-derived digital elevation models, and stream channel bathymetry is estimated by using the Massachusetts bankfull channel geometry equations (Bent and Waite, 2013).

The automated tool runs the HEC–RAS program starting with minimum predetermined spans of the estimated bankfull width at the roadway stream-crossing site for the 10-, 4-, 2-, and 1-percent AEP flood flows to keep flow velocities in the culvert similar to upstream velocities away from the influence of the culvert. The tool increases the size of the culvert, as needed to convey the estimated flood flows, on the basis of standard precast concrete culvert sizes for box and pipe culverts used in the HEC–RAS program. The final culvert designs are set to have at least 1.0 or 2.0 feet of freeboard—the distance from the water surface to the low chord (top) of the culvert—to comply with chapter 85, section 35 of the Massachusetts General Laws’ (Commonwealth of Massachusetts, 2025) review process for municipal bridge projects. The stream-crossing standard design is set to meet two standards: a span of 1.2 times the stream channel’s bankfull width and the openness ratio equal to or greater than 0.82.

USGS StreamStats Web Application

Currently (2026), the USGS is implementing the automated GIS tool for making preliminary culvert designs for roadway stream crossings in Massachusetts in the StreamStats web application (https://streamstats.usgs.gov/ss/). USGS StreamStats is a map-based web application that provides an assortment of analytical tools that can be used for water-resources planning and management and for engineering purposes (Ries and others, 2017, 2024).

In StreamStats, the user can open a stream crossing site’s culvert replacement report to view general site information, which includes the following:

The habitat quality and stream connectivity information are used to provide scores of the aquatic and biological importance of stream crossings. MassDEP and UMass Amherst are currently (2026) developing a guidance document on how these scores could be used to help determine the final culvert design.

The user can then view the GIS-based hydraulic modeling tool output (fig. 5), which includes dimensions, length, cross-sectional area, selected elevations, and stream crossing standards values of the preliminary culvert designs for three-sided box, three-sided arch, and pipe culverts.

Preliminary culvert designs convey the 10-, 4-, 2-, and 1-percent AEP flood flows and meet the Massachusetts stream crossing standards. The user can compare preliminary designs, assess the habitat quality and stream connectivity scores, and then select the preliminary design(s) that will best assist their community in improving flood resiliency and aquatic organism passage for its stream crossing project. The user can also download the input and output files for the HEC–RAS hydraulic model from StreamStats.
